R142710000

Active

Radiall USA, Inc.

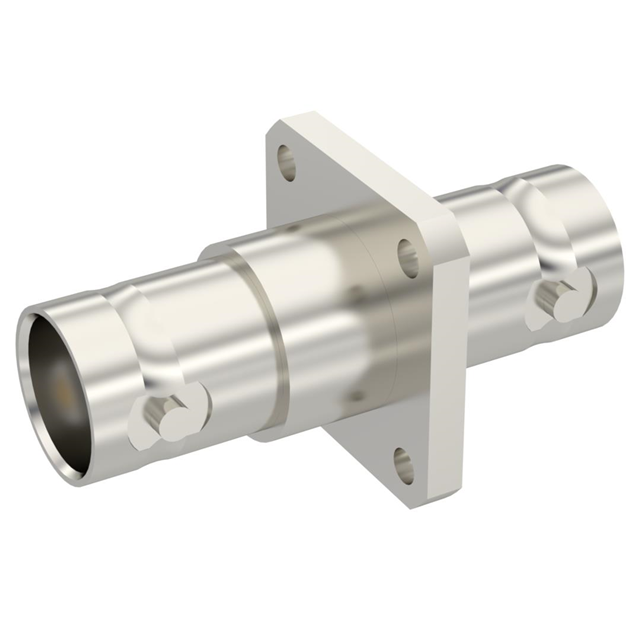

COAX ADAPT BNC TO BNC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT BNC TO BNC

Technical Specifications

Parameters and characteristics for this part

Specification	R142710000

Adapter Series	BNC to BNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Impedance	75 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Convert From (Adapter End)	Convert To (Adapter End)	Insertion Loss	Adapter Type	Adapter Series	Fastening Type	Center Contact Plating	Mounting Feature	Mating Cycles	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Body Finish	Impedance	Center Gender	Dielectric Material	Style	Center Contact Material
Radiall USA, Inc. R142710000	Brass	BNC Jack Female Socket	BNC Jack Female Socket	0.2 dB	Jack to Jack	BNC to BNC	Bayonet Lock	Gold	Flange	500	1.5 GHz	-65 ░C	165 °C	Same Series	Nickel	75 Ohms	Female to Female	Polytetrafluoroethylene (PTFE)	Straight	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 16.51

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 75 Ohms
