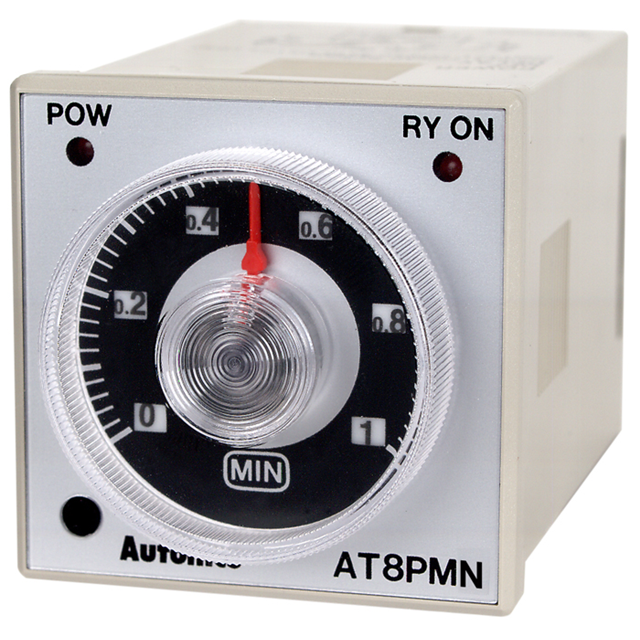

AT8PMN-2

Active

AUTONICS

RELAY TIME DELAY 10MIN 3A 250V

Search across all available documentation for this part.

Active

AUTONICS

RELAY TIME DELAY 10MIN 3A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Function	Contact Rating @ Voltage	Termination Style	Circuit	Voltage - Supply	Timing Adjustment Method	Delay Time [Max]	Delay Time [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]
AUTONICS AT8PMN-2	Off-Delay	3 A 250 VAC	Plug In 8 Pin (Octal)	DPDT (2 Form C)	24 VAC	Hand Dial	10 Min	0.05 Sec
AUTONICS AT8PMN-6	Off-Delay	3 A 250 VAC	Plug In 8 Pin (Octal)	DPDT (2 Form C)		Hand Dial	10 Min	0.05 Sec	100 VAC	120 VAC
AUTONICS AT8PMN	Off-Delay	3 A 250 VAC	Plug In 8 Pin (Octal)	DPDT (2 Form C)		Hand Dial	10 Min	0.05 Sec	200 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Off-Delay Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 10 Min Delay 3A @ 250VAC Panel Mount
