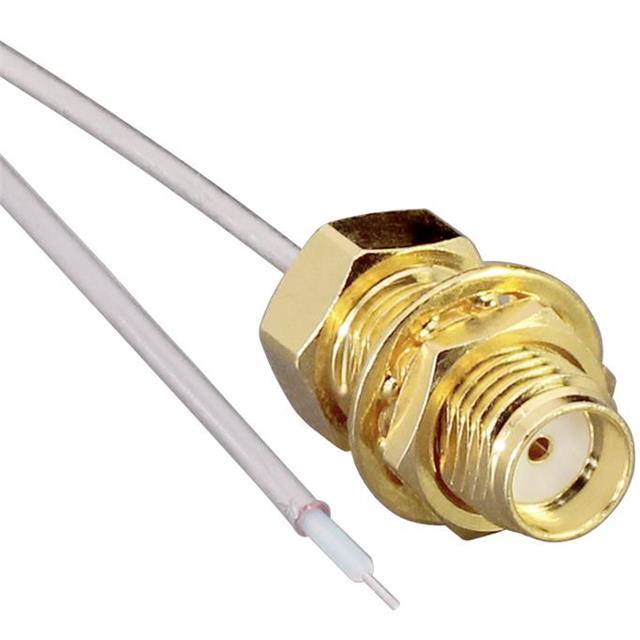

CSS-SGAF-050-STTN
ActiveTE Connectivity Linx
CBL ASSY SMA JACK 2"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSS-SGAF-050-STTN
ActiveTE Connectivity Linx
CBL ASSY SMA JACK 2"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSS-SGAF-050-STTN |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Cable Type | 0.047" Semi-Rigid Cable |
| Color | White |
| Frequency - Max [Max] | 8 GHz |
| Length | 50.8 mm |
| Length | 2 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 15.09 | |
| 250 | $ 14.56 | |||
Description
General part information
CSS-SGAF Series
Cable Assembly Coaxial SMA to Cable 0.047" Semi-Rigid Cable 2.000" (50.80mm)
