CA11265_HEIDI-M

Active

LEDiL

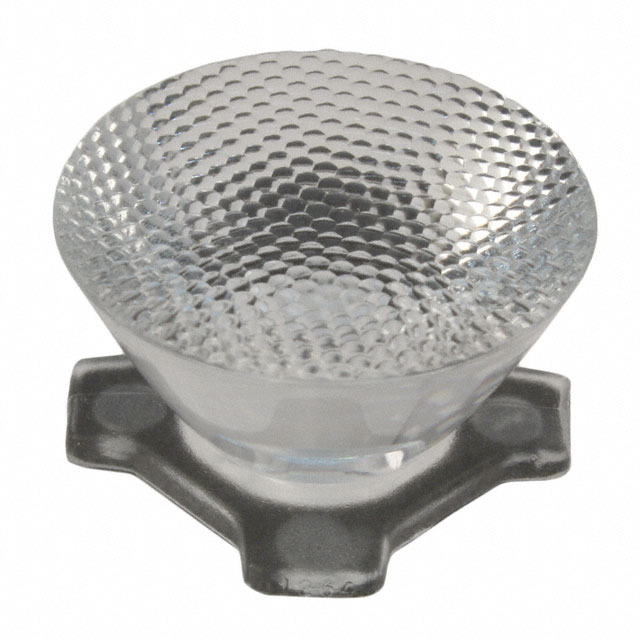

LED LENS, CLIP-ON, MEDIUM, TRANSPARENT, 21.6 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Search across all available documentation for this part.

Active

LEDiL

LED LENS, CLIP-ON, MEDIUM, TRANSPARENT, 21.6 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)

Technical Specifications

Parameters and characteristics for this part

Specification	CA11265_HEIDI-M

Color	Clear
For Use With/Related Manufacturer	Seoul, Nichia, Sharp, Lumileds, Philips, Osram, Cree
Lens Size [diameter]	21.6 mm
Lens Transparency	Diffused
Material	Acrylic
Mounting Type	Adhesive Tape
Number of LEDs	1
Optical Pattern	Medium
Type	Lens with Integrated Mount
Viewing Angle [Max]	29 °
Viewing Angle [Min]	26 °

Part	Color	Type	Number of LEDs	Lens Transparency	Material	Optical Pattern	Lens Size [diameter]	For Use With/Related Manufacturer	Viewing Angle [Max]	Viewing Angle [Min]	Mounting Type
LEDiL CA11265_HEIDI-M	Clear	Lens with Integrated Mount	1	Diffused	Acrylic	Medium	21.6 mm	Cree Lumileds Nichia Osram Philips Seoul Sharp	29 °	26 °	Adhesive Tape

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens with Integrated Mount Clear 26° ~ 29° Medium Adhesive Tape
