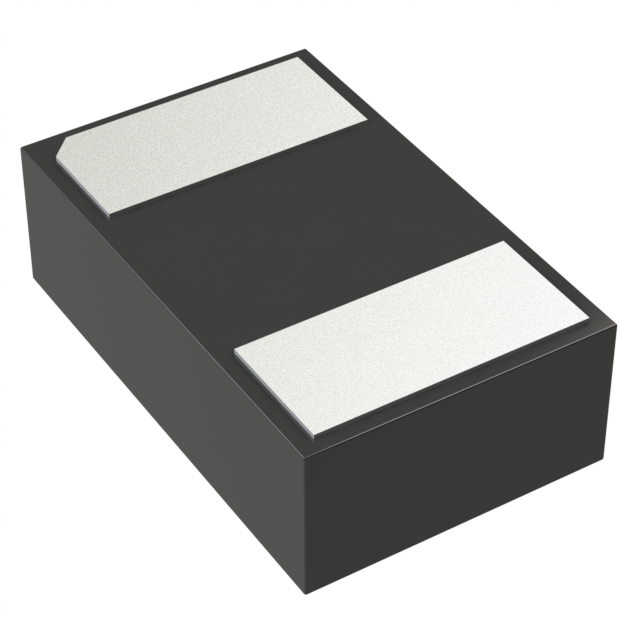

TVS8501V5MUT5G
LTBON Semiconductor
TVS DIODE 5VWM 11.5VC 2UDFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TVS8501V5MUT5G
LTBON Semiconductor
TVS DIODE 5VWM 11.5VC 2UDFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TVS8501V5MUT5G |
|---|---|
| Capacitance @ Frequency | 16 pF |
| Current - Peak Pulse (10/1000µs) | 70 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | 2-UDFN |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | 2-UDFN (1.6x1) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 6 V |
| Voltage - Reverse Standoff (Typ) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.36 | |||
| 100 | $ 0.23 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2000 | $ 0.14 | |||
| Tape & Reel (TR) | 8000 | $ 0.11 | ||
| 16000 | $ 0.10 | |||
| 24000 | $ 0.10 | |||
| 56000 | $ 0.09 | |||
Description
General part information
TVS8501 Series
11.5V Clamp 70A (8/20µs) Ipp Tvs Diode Surface Mount 2-UDFN (1.6x1)
