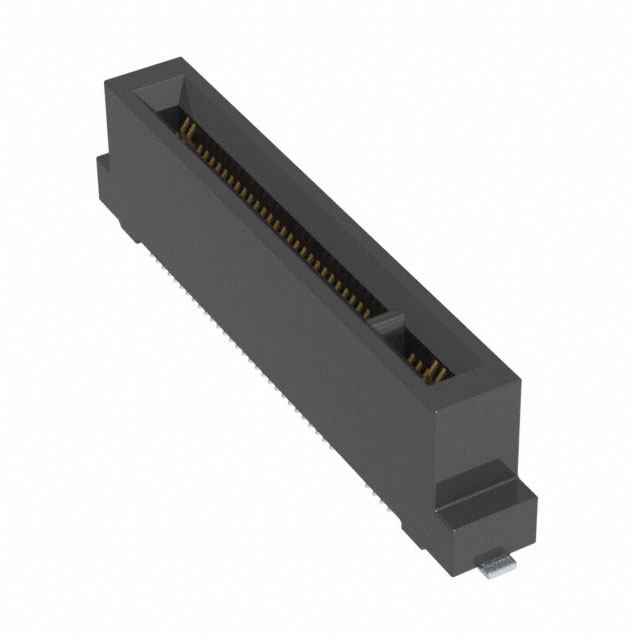

MD3670M11000111
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 67POS 0.020
Deep-Dive with AI
Search across all available documentation for this part.
MD3670M11000111
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 67POS 0.020
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MD3670M11000111 |
|---|---|
| Card Thickness | 0.031 in |
| Card Thickness | 0.79 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Board Guide, Board Lock |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.20 | |
| 10 | $ 7.84 | |||
| 25 | $ 7.09 | |||
| 50 | $ 6.78 | |||
| Digi-Reel® | 1 | $ 10.20 | ||
| 10 | $ 7.84 | |||
| 25 | $ 7.09 | |||
| 50 | $ 6.78 | |||
| Tape & Reel (TR) | 600 | $ 6.07 | ||
Description
General part information
MD3670 Series
67 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
