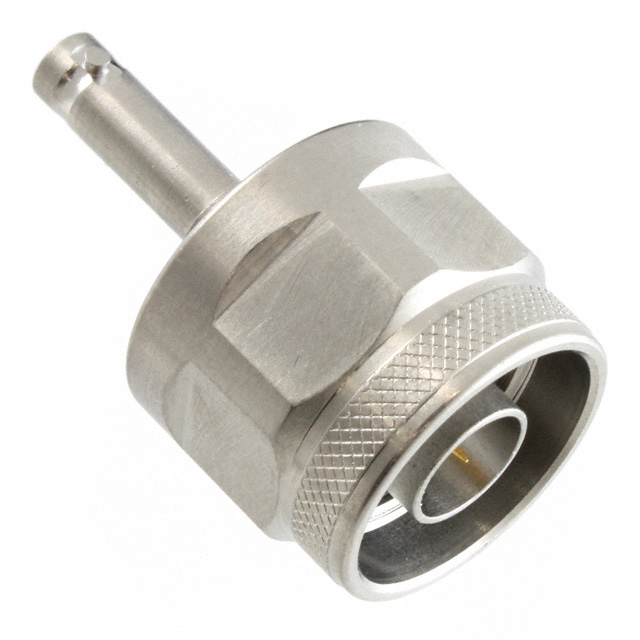

APH-NP-HDBNCJ

Active

Amphenol RF

CONN ADAPT N PLUG TO HDBNC JACK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT N PLUG TO HDBNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	APH-NP-HDBNCJ

Adapter Series	N, BNC, HD
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	BNC HD Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mating Cycles	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Frequency - Max [Max]	Adapter Type	Center Contact Plating	Body Finish	Mounting Type	Style	Dielectric Material	Impedance	Body Material	Convert To (Adapter End)	Center Contact Material	Adapter Series	Center Gender	Fastening Type
Amphenol RF APH-NP-TNCJ	500	N Plug Male Pin	-65 ░C	165 °C	Between Series	11 GHz	Plug to Jack	Gold	Nickel	Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Female Socket TNC Jack	Phosphor Bronze	N to TNC
Amphenol RF APH-NP-BNCP		BNC Plug Male Pin	-55 °C	165 °C	Between Series	4 GHz	Plug to Plug	Gold	Nickel	Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Male Pin N Plug	Brass	BNC to N	Male to Male	Bayonet Lock Threaded
Amphenol RF APH-NP-TNCP		N Plug Male Pin	-65 ░C	165 °C	Between Series	11 GHz	Plug to Plug	Gold	Nickel	Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Male Pin TNC Plug	Brass	N to TNC	Male to Male
Amphenol RF APH-NP-UHFJ		N Plug Male Pin	-65 ░C	165 °C	Between Series	300 MHz	Plug to Jack	Gold	Nickel	Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	Female Socket UHF Jack	Brass	N to UHF
Amphenol RF APH-NP-HDBNCJ	500	N Plug Male Pin	-65 ░C	165 °C	Between Series	4 GHz	Plug to Jack	Gold		Free Hanging (In-Line)	Straight	Polytetrafluoroethylene (PTFE)	75 Ohms	Stainless Steel	BNC HD Jack Female Socket	Beryllium Copper	BNC HD N		Bayonet Lock Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 74.57

General part information

Adapter Coaxial Connector N Plug, Male Pin To BNC HD Jack, Female Socket 75 Ohms
