Technical Specifications
Parameters and characteristics for this part
| Specification | 35FM3S |
|---|---|
| Body Color | Silver |
| Body Material | Brass |
| Connector Type | Phone Jack |
| Contact Material | Beryllium Copper |
| Contact Material - Plating [custom] | Silver |
| Gender | Female |
| Housing Material | Copper Alloy |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Panel Hole Size | 9.91 mm |
| Panel Hole Size | 0.39 in |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder Eyelet(s) |
| Thread Size | 3/8"-32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
35FM3 Series

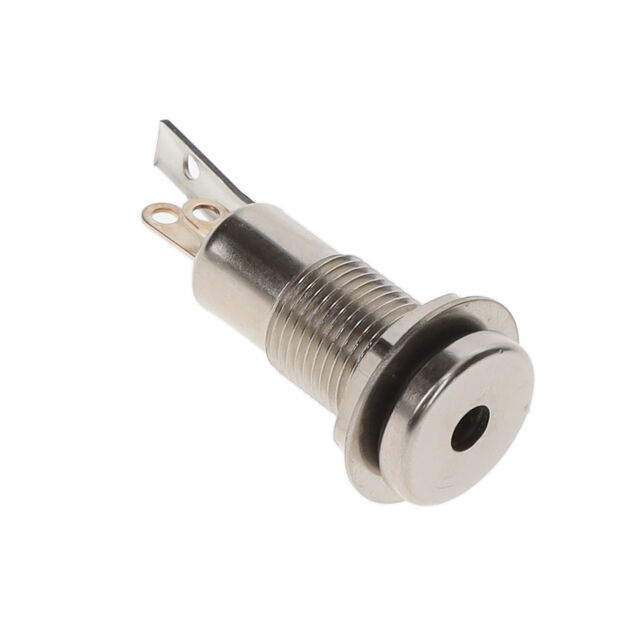

Phone Connectors 3.5MM JACK ASSM FRONT PANEL MOUNT
