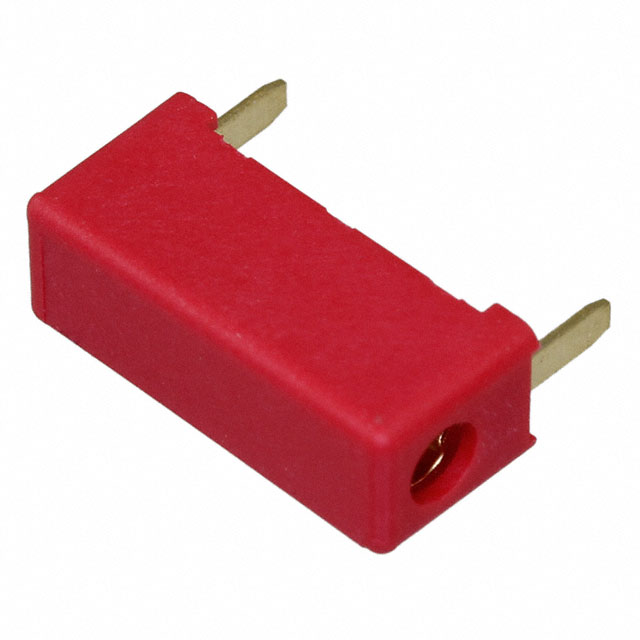

M3498-99 - M3498-99

M3498-99

Active
Harwin Inc.

TEST JACK, 5A, 1.5KV, TH, RED

Deep-Dive with AI

DocumentsDatasheetH3153-01+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM3498-99
Body MaterialNylon, Polyamide (PA)
ColorRed
Contact FinishGold
Contact MaterialPhosphor Bronze
GenderFemale
InsulationFully Insulated
Mounting TypeThrough Hole, Horizontal
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Plug/Mating Plug DiameterStandard Tip
TerminationSolder
TypeTip Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 4.25
10$ 3.25
25$ 2.93
50$ 2.71
100$ 2.51
250$ 2.28
500$ 2.12
1000$ 1.98
2500$ 1.81
NewarkEach 1$ 3.74
10$ 3.25
25$ 3.08
50$ 2.96
100$ 2.84
250$ 2.69
500$ 2.59
1000$ 2.49

Description

General part information

M3498 Series

Tip Jack Connector Standard Tip Solder Red
