HIF3CA-34PA-2.54DSA(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

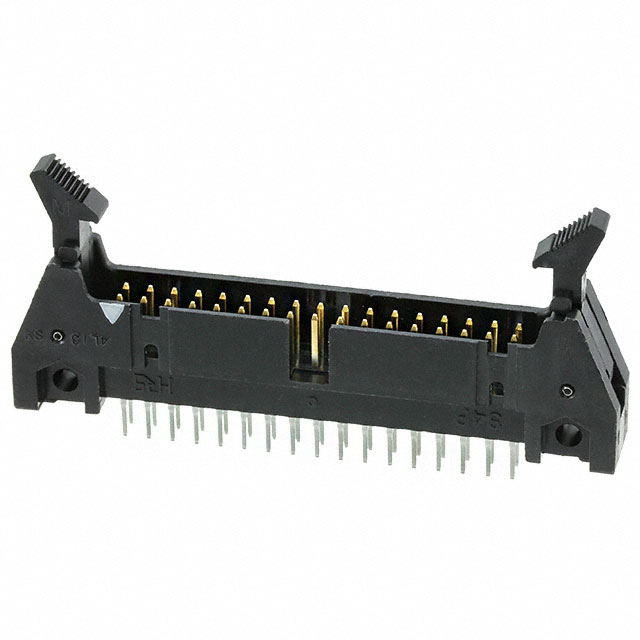

HIF3CA-34PA-2.54DSA(71)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 34POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3CA-34PA-2.54DSA(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.701 "
Insulation Height	17.8 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	16.7 mm
Overall Contact Length	0.657 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

HIF3CA Series

Part	Material Flammability Rating	Contact Finish - Post	Contact Shape	Insulation Color	Overall Contact Length	Overall Contact Length	Style	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Material	Fastening Type	Contact Type	Number of Rows	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Connector Type	Termination	Shrouding	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions	Insulation Height	Insulation Height	Mounting Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)
Hirose Electric USA, Inc. HIF3CA-50PA-2.54DSA(71)	UL94 V-0	Tin	Square	Black	16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	50	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin
Hirose Electric USA, Inc. HIF3CA-34PA-2.54DSA(71)	UL94 V-0	Tin	Square	Black	16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	34	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin
Hirose Electric USA, Inc. HIF3CA-30PA-2.54DSA(63)	UL94 V-0	Tin	Square	Black			Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall			Keying Slot	30	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Varies by Wire Gauge
Hirose Electric USA, Inc. HIF3CA-30PA-2.54DSA(71)	UL94 V-0	Tin	Square	Black	16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	30	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin
Hirose Electric USA, Inc. HIF3CA-40PA-2.54DSA(63)	UL94 V-0	Tin	Square	Black			Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall			Keying Slot	40	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Varies by Wire Gauge
Hirose Electric USA, Inc. HIF3CA-30PA-2.54DSA(91)	UL94 V-0		Square		16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	30	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HIF3CA-50PA-2.54DSA(63)	UL94 V-0	Tin	Square	Black			Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall			Keying Slot	50	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Varies by Wire Gauge
Hirose Electric USA, Inc. HIF3CA-20PA-2.54DSA(91)	UL94 V-0		Square		16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	20	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HIF3CA-10PA-2.54DSA(71)	UL94 V-0	Tin	Square	Black	16.7 mm	0.657 in	Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall	6 mm	0.236 in	Keying Slot	10	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin
Hirose Electric USA, Inc. HIF3CA-26PA-2.54DSA(63)	UL94 V-0	Tin	Square	Black			Board to Cable/Wire	0.13 in	3.3 mm	All	Polybutylene Terephthalate (PBT)	Latch Lock/Eject Hooks	Male Pin	2	200 V	85 °C	-55 °C	Brass	Header	Solder	Shrouded - 4 Wall			Keying Slot	26	0.701 "	17.8 mm	Through Hole	0.1 in	2.54 mm	2.54 mm	0.1 in	Gold	0.203 Ám	8 Áin	2 çm	78.7 çin	Varies by Wire Gauge
