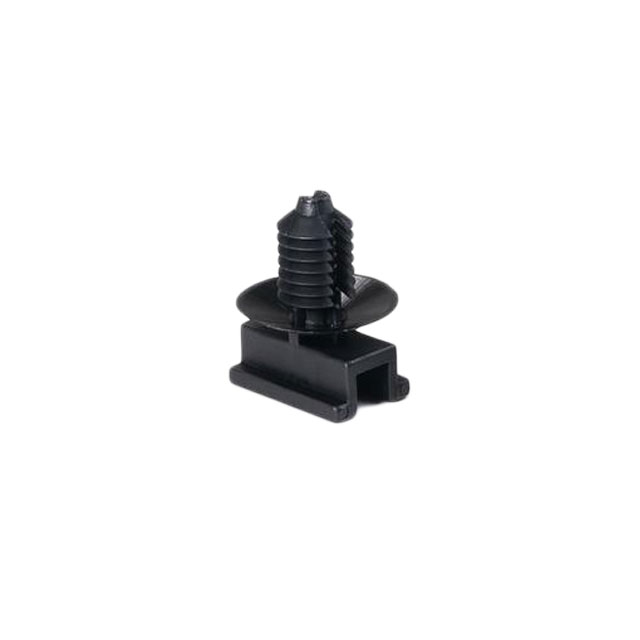

155-03800

Active

HELLERMANNTYTON

CONN. CLIP W/FIR TREE, 0.7 - 6.0 MM PANEL THICK., 6.5 - 7.0 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONN. CLIP W/FIR TREE, 0.7 - 6.0 MM PANEL THICK., 6.5 - 7.0 MM HOLE DIA., PA66HIRHS, BLACK, 500/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	155-03800

Color	Black
Features	UV Resistant, Heat Stabilized, Impact Resistant
Height [z]	0.37 in
Height [z]	9.4 mm
Length [x]	0.63 in
Length [x]	16 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Fir Tree
Panel Hole Size [Max]	7 mm
Panel Hole Size [Max]	0.276 in
Panel Hole Size [Min]	6.5 mm
Panel Hole Size [Min]	0.256 in
Panel Thickness [Max]	0.236 in
Panel Thickness [Max]	6 mm
Panel Thickness [Min]	0.028 in
Panel Thickness [Min]	0.7 mm
Type	Connector, Clip
Width [y]	0.413 in
Width [y]	10.5 mm

Part	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Panel Hole Size [Max]	Material	Width [y]	Width [y]	Features	Mounting Type	Color	Type	Height [z]	Height [z]	Material Flammability Rating	Length [x]	Length [x]
HELLERMANNTYTON 155-03800	0.236 in	6 mm	0.028 in	0.7 mm	7 mm	6.5 mm	0.256 in	0.276 in	Polyamide (PA66) Nylon 6/6	0.413 in	10.5 mm	Heat Stabilized Impact Resistant UV Resistant	Cupped Fir Tree	Black	Clip Connector	0.37 in	9.4 mm	UL94 HB	0.63 in	16 mm
