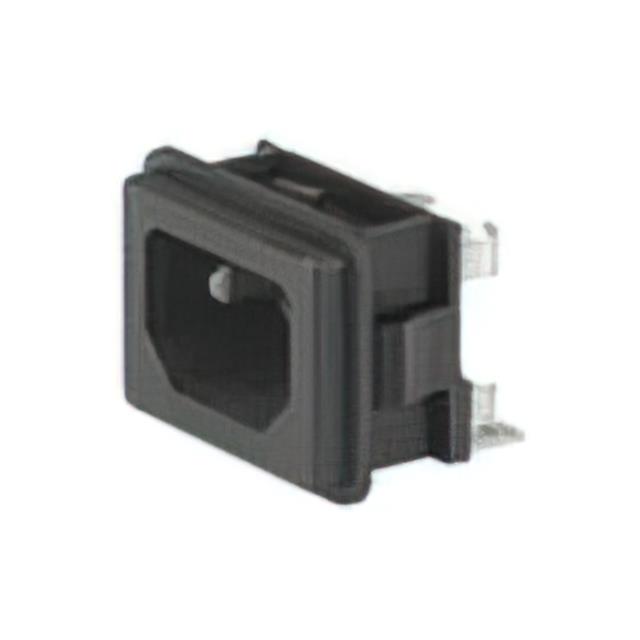

GSF2.1022.01

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	GSF2.1022.01

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Type	Mounting Type	Connector Style	Fuse Holder, Drawer	Material Flammability Rating	Accomodates a Fuse	Voltage Rating - Appliance Inlet	Termination	Termination	Current Rating - Appliance Inlet	Ingress Protection	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Approval Agency	Filter Type
SCHURTER Inc. GSF2.1022.01	Male Blades Receptacle	Panel Mount Snap-In	IEC 320-C14	Fuse Holder	UL94 V-0		250 VAC	0.189 " 4.8 mm	Quick Connect	10 A	IP40	3 mm	0.118 in	0.039 in	1 mm	CCC CSA ENEC UL	Unfiltered - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.75

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
