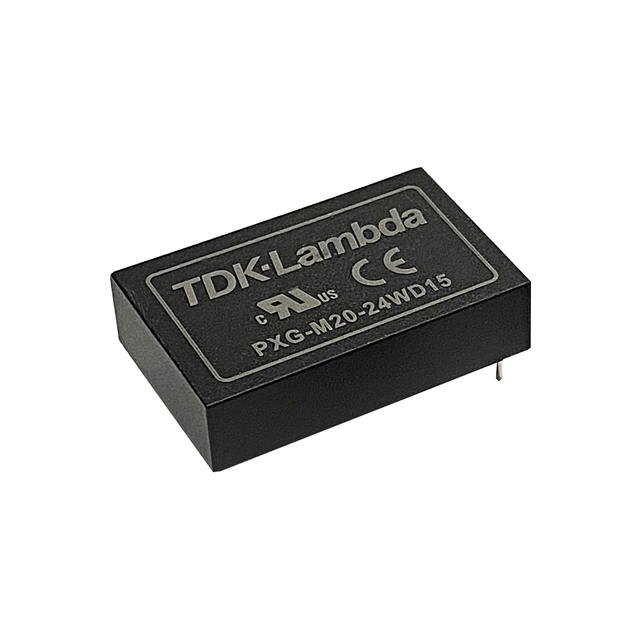

PXG-M20-48WD15

Active

TDK-LAMBDA

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 18-75VDCIN +/-15VOUT 677MA

Search across all available documentation for this part.

Active

TDK-LAMBDA

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 20W 18-75VDCIN +/-15VOUT 677MA

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Features	Mounting Type	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Isolation	Voltage - Output 1	Approval Agency	Voltage - Output 2	Efficiency	Power (Watts)	Type	Number of Outputs	Current - Output (Max) [Max]
TDK-LAMBDA PXG-M20-48WD15	-40 °C	105 C	677 mA	18 V	75 V	Adjustable Output	Through Hole	6-DIP Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	ITE (Commercial) Medical	5000 V	15 V	CE	-15 V	89 %	20 W	Isolated Module	2
TDK-LAMBDA PXG-M20-48WS15	-40 °C	105 C		18 V	75 V	Adjustable Output	Through Hole	6-DIP Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	ITE (Commercial) Medical	5000 V	15 V	CE		89 %	20 W	Isolated Module	1	1.33 A
TDK-LAMBDA PXG-M20-24WS24	-40 °C	105 C		9 V	36 V	Adjustable Output	Through Hole	6-DIP Module	10.2 mm	40.6 mm	1.6 "	25.4 mm	25.4 mm	0.4 "	ITE (Commercial) Medical	5000 V	24 V	CE		88.5 %	20 W	Isolated Module	1	833 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 78.88
Newark	Each	1	$ 78.87
		50	$ 77.29

General part information

Isolated Module DC DC Converter 2 Output 15V -15V 677mA, 677mA 18V - 75V Input
