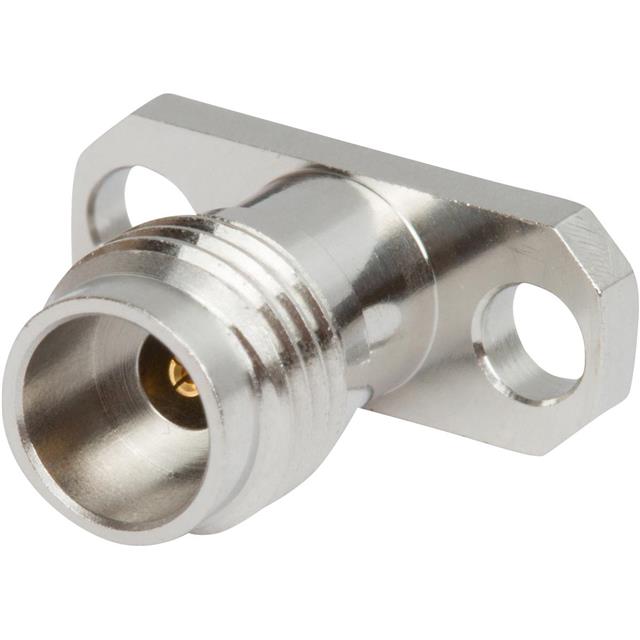

3321-60054

Active

Amphenol SV Microwave

1.85MM FEMALE FIELD REPLACEABLE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

1.85MM FEMALE FIELD REPLACEABLE

Technical Specifications

Parameters and characteristics for this part

Part	Center Contact Material	Mounting Feature	Mounting Type	Mating Cycles	Connector Style	Center Contact Plating	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Material	Impedance	Contact Termination	Shield Termination	Frequency - Max [Max]	Dielectric Material	Housing Color
Amphenol SV Microwave 3321-60054	Beryllium Copper	Flange	Surface Mount	500	1.85 mm	Gold	1	-65 ░C	165 °C	Female Socket Jack	Stainless Steel	50 Ohms	Compression	Screw	67 GHz	Polyetherimide (PEI)	Silver
Amphenol SV Microwave 3321-60059	Beryllium Copper		Board Edge End Launch	500	1.85 mm	Gold	1	-65 ░C	165 °C	Female Socket Jack	Stainless Steel	50 Ohms	Compression	Screw	67 GHz	Polyetherimide (PEI)	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 88.48

General part information

1.85mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression

Technical documentation and resources

No documents available
