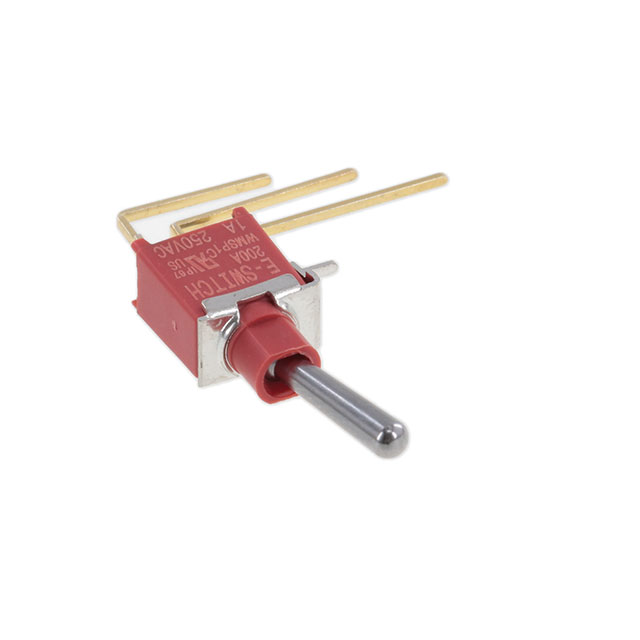

200AWMSP1T1A1M7QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200AWMSP1T1A1M7QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	200AWMSP1T1A1M7QE

Actuator Length [x]	10.16 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

200AWMSP1 Series

Part	Actuator Length [x]	Actuator Type	Electrical Life	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Switch Function	Ingress Protection	Circuit	Bushing Thread	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Illumination	Actuator Material
E-Switch 200AWMSP1T2A1M2QE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole	3 A	120 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T2A1VS2QE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole	3 A	120 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T1A1M2RE	10.16 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole	0.4 VA	20 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T2A1M6QE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole Right Angle	3 A	120 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T2A1M2RE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole	0.4 VA	20 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T2A1M6RE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	PC Pin	On-Mom	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole Right Angle	0.4 VA	20 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T1A1M7QE	10.16 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Right Angle Through Hole Vertical	3 A	120 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T3A1M6QE	5.08 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	28 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole Right Angle	3 A	120 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T2A1VS2RE	6.1 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole	0.4 VA	20 V	Non-Illuminated	Brass Chrome Plated
E-Switch 200AWMSP1T1A1M6RE	10.16 mm	Standard Round	50000 Cycles	Epoxy Sealed Terminals	-30 ░C	85 °C	20 V	PC Pin	On-On	IP67 - Dust Tight Waterproof	SPDT	Unthreaded	Through Hole Right Angle	0.4 VA	20 V	Non-Illuminated	Brass Chrome Plated
