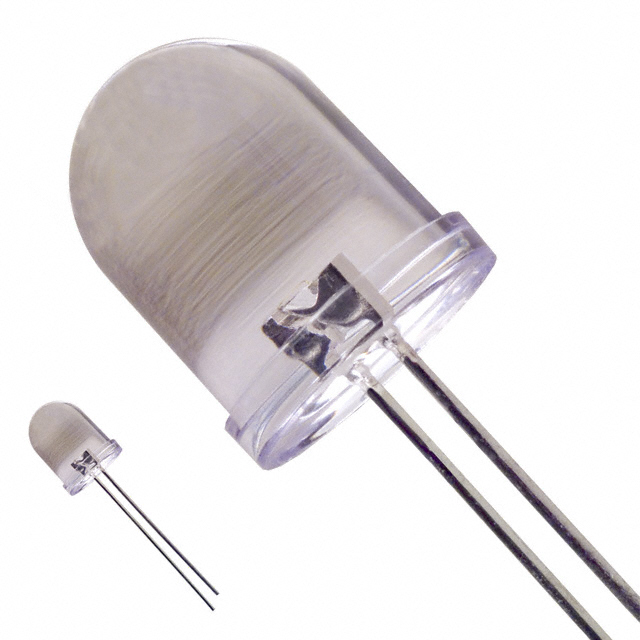

SSL-LX100133SIC

Active

Lumex Opto/Components Inc.

LED RED CLEAR T-10MM T/H

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED CLEAR T-10MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Height (Max) [Max]	Configuration	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Color	Millicandela Rating	Lens Transparency	Lens Size [diameter]	Lens Style	Supplier Device Package	Color	Viewing Angle	Wavelength - Peak
Lumex Opto/Components Inc. SSL-LX100133SRD/D	13.5 mm	Independent	Radial	20 mA	1.7 V	Through Hole	Red	400 mcd	Diffused	10 mm	Round with Domed Top	T-10mm	Red	60 °	660 nm
Lumex Opto/Components Inc. SSL-LX100133AC	13.5 mm	Standard	Radial	20 mA	2.1 V	Through Hole	Colorless	110 mcd	Clear	10 mm	Round with Domed Top	T-10mm	Amber	20 °	605 nm
Lumex Opto/Components Inc. SSL-LX100133USBC	13.5 mm	Standard	Radial	20 mA	3.6 V	Through Hole	Colorless	800 mcd	Clear	10 mm	Round with Domed Top	T-10mm	Blue	15 °
Lumex Opto/Components Inc. SSL-LX100133USBD	13.5 mm	Standard	Radial	20 mA	3.6 V	Through Hole	Blue	300 mcd	Diffused	10 mm	Round with Domed Top	T-10mm	Blue	60 °
Lumex Opto/Components Inc. SSL-LX100133SIC	13.5 mm	Standard	Radial	20 mA	2 V	Through Hole	Colorless		Clear	10 mm	Round with Domed Top	T-10mm	Red	30 °	636 nm
Lumex Opto/Components Inc. SSL-LX100133SGD	13.5 mm	Standard	Radial	20 mA	2.2 V	Through Hole	Green	45 mcd	Diffused	10 mm	Round with Domed Top	T-10mm	Green	60 °	565 nm
Lumex Opto/Components Inc. SSL-LX100133SRD/G	13.5 mm	Standard	Radial	20 mA	1.7 V	Through Hole	Red	725 mcd	Diffused	10 mm	Round with Domed Top	T-10mm	Red	60 °	660 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red LED Indication - Discrete 2V Radial

Technical documentation and resources

No documents available
