0305-2-15-80-47-27-10-0

Active

Mill-Max Manufacturing Corp.

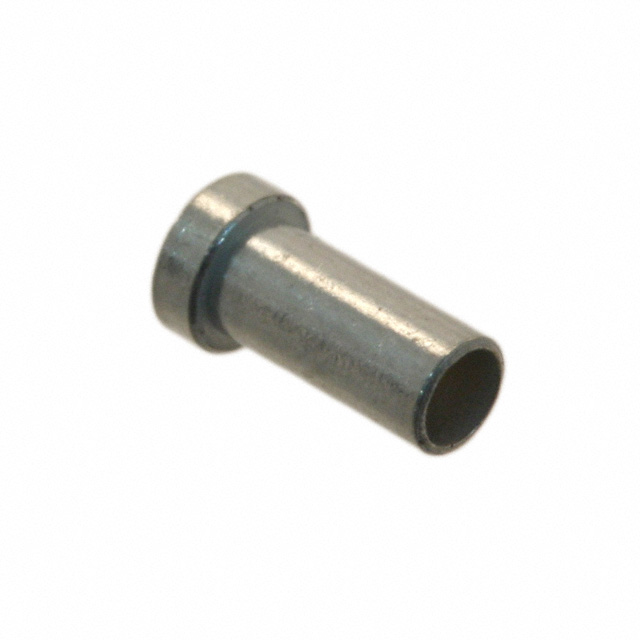

CONN PIN RCPT .025-.037 SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0305-2-15-80-47-27-10-0

Accepts Pin Diameter [Max]	0.037 "
Accepts Pin Diameter [Max]	0.94 mm
Accepts Pin Diameter [Min]	0.64 mm
Accepts Pin Diameter [Min]	0.025 "
Accepts Square Pin Size [diameter]	0.64 mm
Accepts Square Pin Size [diameter]	0.025 in
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.93 mm
Flange Diameter [diameter]	0.076 in
Length - Overall [x]	3.94 mm
Length - Overall [x]	0.155 "
Mounting Hole Diameter [diameter]	0.061 "
Mounting Hole Diameter [diameter]	1.55 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	3.94 mm
Socket Depth	0.155 in
Tail Type	No Tail
Termination	Solder

0305-2 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Socket Depth	Socket Depth	Accepts Square Pin Size [diameter]	Accepts Square Pin Size [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0305-2-15-15-47-27-10-0	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in
Mill-Max Manufacturing Corp. 0305-2-15-80-47-14-10-0	0.25 Ám	10 Áin	Gold	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in
Mill-Max Manufacturing Corp. 0305-2-15-80-47-27-10-0	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in
Mill-Max Manufacturing Corp. 0305-2-15-80-47-80-10-0	5.08 Ám	200 Áin	Tin	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in
Mill-Max Manufacturing Corp. 0305-2-15-15-47-14-10-0	0.25 Ám	10 Áin	Gold	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in
Mill-Max Manufacturing Corp. 0305-2-15-01-47-27-10-0	0.76 Ám	30 Áin	Gold	-55 °C	125 °C	3.94 mm	0.155 "	Solder	0.061 "	1.55 mm	0.051 in	1.3 mm	0.037 "	0.64 mm	0.94 mm	0.025 "	No Tail	3.94 mm	0.155 in	0.64 mm	0.025 in	Beryllium Copper	1.93 mm	0.076 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.31
		25	$ 0.28
		50	$ 0.26
		100	$ 0.24
		250	$ 0.21
		500	$ 0.20
		1000	$ 0.18
		2500	$ 0.17

Description

General part information

0305-2 Series

Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Solder

Documents

Technical documentation and resources

No documents available
