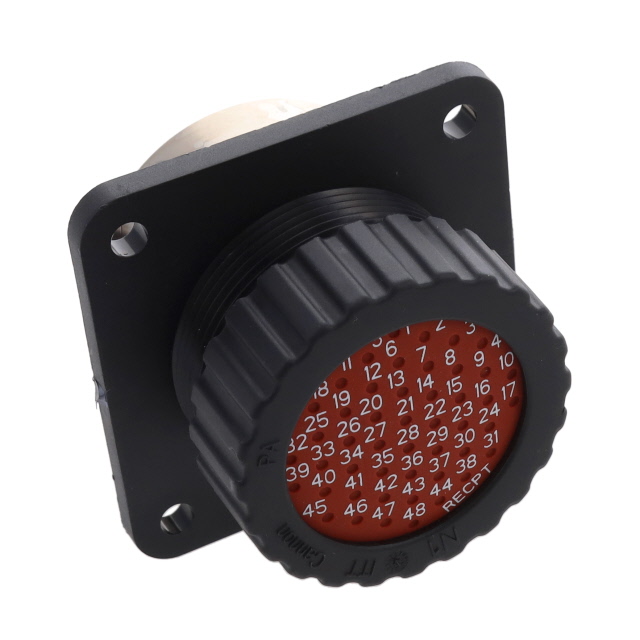

TN0S24-0048P1L

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 48POS PNL MT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSNG MALE 48POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	TN0S24-0048P1L

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Solder, Crimp
Fastening Type	Detent Lock
Housing Color	Black
Includes	1 Grommet, 1 O-Ring, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	48
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size - Insert	24-0048
Shielding	Unshielded
Type	For Male Pins

Part	Shell Size - Insert	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Type	Note	Number of Positions	Contact Type	Ingress Protection	Material Flammability Rating	Connector Type	Shielding	Housing Color	Includes	Contact Shape	Fastening Type
ITT Cannon, LLC TN0S24-0048P1L	24-0048	105 ░C	-55 °C	Flange	For Male Pins	Contacts Not Included	48	Crimp Solder Solder Cup	IP67 - Dust Tight Waterproof	UL94 V-0	Receptacle Housing	Unshielded	Black	1 Connector 1 Grommet 1 Nut 1 O-Ring	Circular	Detent Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Circular Connector Receptacle Housing Panel Mount
