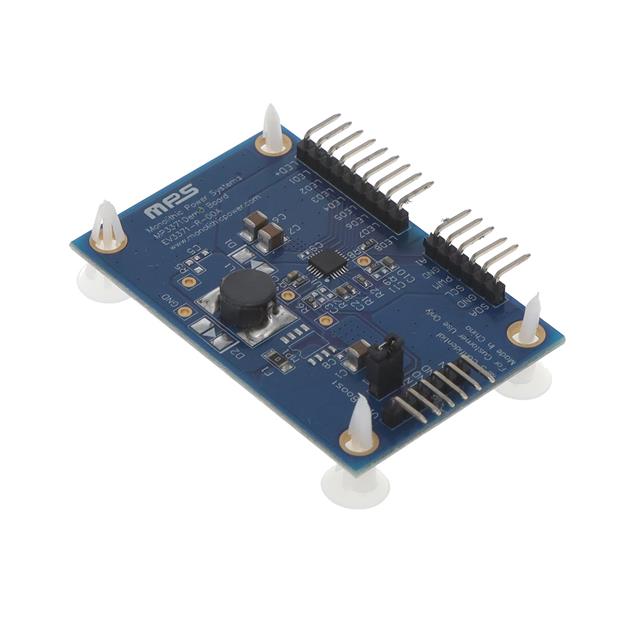

EV3371-R-00A

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD, SYNC BOOST WLED DRIVER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

EVALUATION BOARD, SYNC BOOST WLED DRIVER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Voltage - Output	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Features	Utilized IC / Part	Current - Output / Channel	Supplier Device Package	Voltage - Supply (Max)	Package / Case	Voltage - Supply (Min) [Min]	Dimming	Mounting Type	Number of Outputs	Frequency	Type	Internal Switch(s)	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Applications	Topology
MONOLITHIC POWER SYSTEMS (MPS) EV3371-R-00A	Board(s)	45 V	8 Non-Isolated Outputs	3 V	30 V	Dimmable	MP3371	50 mA
MONOLITHIC POWER SYSTEMS (MPS) MP3371GR-0000-P								50 mA	24-QFN (4x4)	30 V	24-VFQFN Exposed Pad	3 V	Analog I2C PWM	Surface Mount	8	1.2 MHz 350 kHz 500 kHz 650 kHz 800 kHz 950 kHz	DC DC Regulator		-40 °C	125 ¯C	Automotive	Backlight	Step-Up (Boost)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.00
Newark	Each	1	$ 74.10

General part information

MP3371 - 8 Non-Isolated Outputs pval(5) LED Driver Evaluation Board
