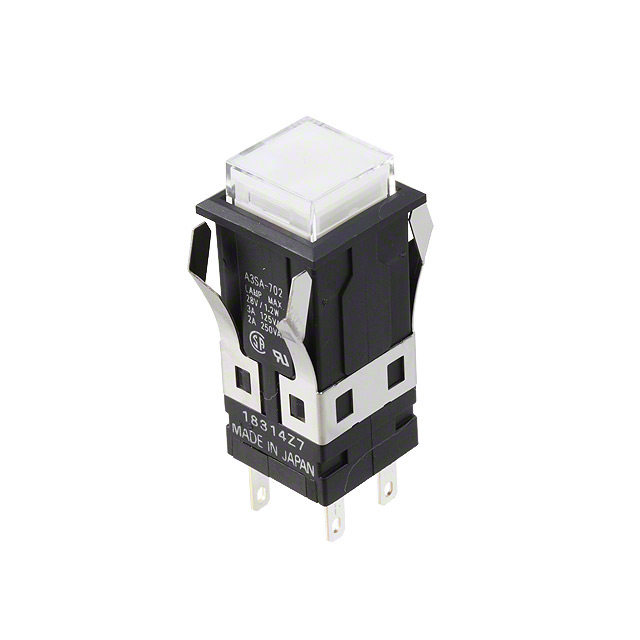

A3SA-90B1-24SPW
ObsoleteOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A3SA-90B1-24SPW
ObsoleteOmron Electronics Inc-EMC Div
SWITCH PUSHBUTTON SPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A3SA-90B1-24SPW |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 2 A, 3 A |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | White, LED |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Ingress Protection | IP00 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Panel Cutout Dimensions [x] | 16.2 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.09 | |
Description
General part information
A3SA-90 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
