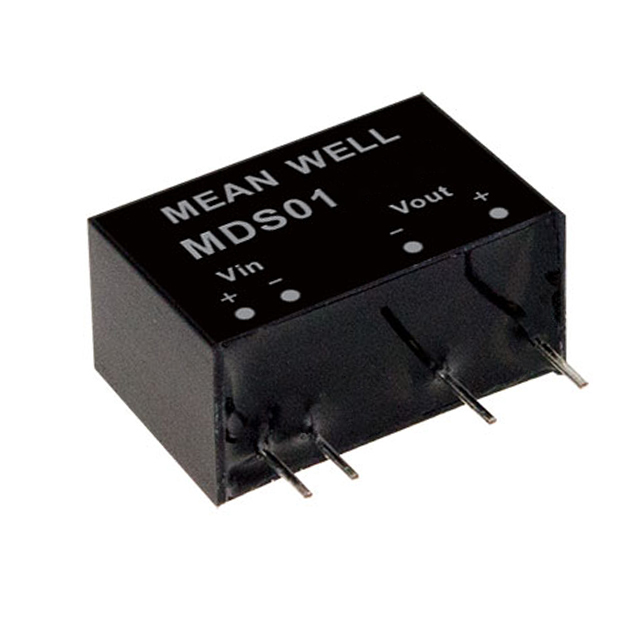

MDS01N-15

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 1W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Type	Applications	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Efficiency
MEAN WELL USA Inc. MDS01M-12	7-SIP Module 4 Leads	SCP	7-SIP	85 °C	-40 °C	6000 V	Through Hole	Isolated Module	Medical	84 mA	13.2 V	10.8 V	1	12 V
MEAN WELL USA Inc. MDS01L-05	7-SIP Module 4 Leads	SCP	7-SIP	85 °C	-40 °C	6000 V	Through Hole	Isolated Module	Medical	200 mA	5.5 V	4.5 V	1	5 V	78 %
MEAN WELL USA Inc. MDS01M-15	7-SIP Module 4 Leads	SCP	7-SIP	85 °C	-40 °C	6000 V	Through Hole	Isolated Module	Medical	67 mA	13.2 V	10.8 V	1	15 V	83 %
MEAN WELL USA Inc. MDS01N-15	7-SIP Module 4 Leads	SCP	7-SIP	85 °C	-40 °C	6000 V	Through Hole	Isolated Module	Medical	67 mA	26.4 V	21.6 V	1	15 V	79 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
