WAVE-35-125

Active

Wakefield-Vette

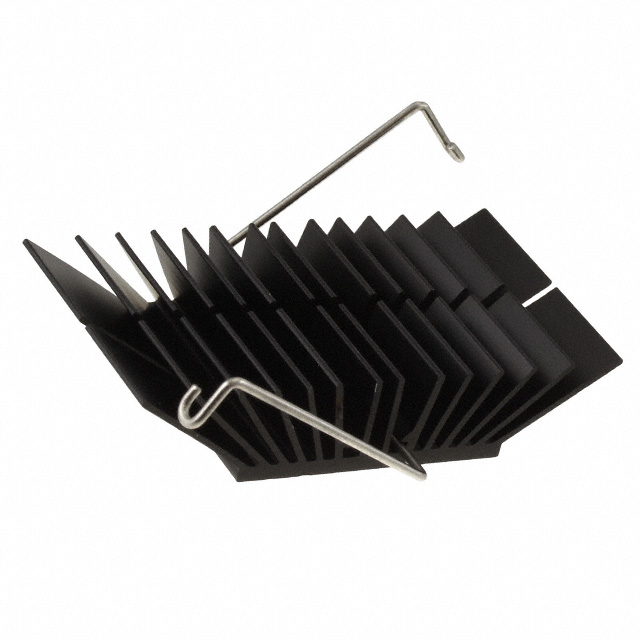

ANCHOR HEATSINK 35X35X12.5MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ANCHOR HEATSINK 35X35X12.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	WAVE-35-125

Attachment Method	Clip
Fin Height	12.5 mm
Fin Height	0.492 in
Length [x]	1.378 in
Length [x]	35 mm
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Angled Fins, Square
Thermal Resistance @ Forced Air Flow	3.63 °C/W
Type	Board Level
Width	35 mm
Width [x]	1.378 in

Part	Material	Attachment Method	Thermal Resistance @ Forced Air Flow	Package Cooled	Width [x]	Width	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Material Finish	Type	Shape	Fin Height	Fin Height
Wakefield-Vette WAVE-35-12	Aluminum Alloy	Clip	3.83 °C/W 200 LFM	BGA	1.378 in	35 mm	1.378 in	35 mm	0.472 in	12 mm	Black Anodized	Board Level	Angled Fins Square
Wakefield-Vette WAVE-35-15	Aluminum Alloy	Clip	3.15 °C/W	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.59 "	15 mm
Wakefield-Vette WAVE-35-21	Aluminum Alloy	Clip	2.11 °C/W 200 LFM	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.827 in	21 mm
Wakefield-Vette WAVE-35-125	Aluminum Alloy	Clip	3.63 °C/W	BGA	1.378 in	35 mm	1.378 in	35 mm			Black Anodized	Board Level	Angled Fins Square	0.492 in	12.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink BGA Aluminum Alloy Board Level
