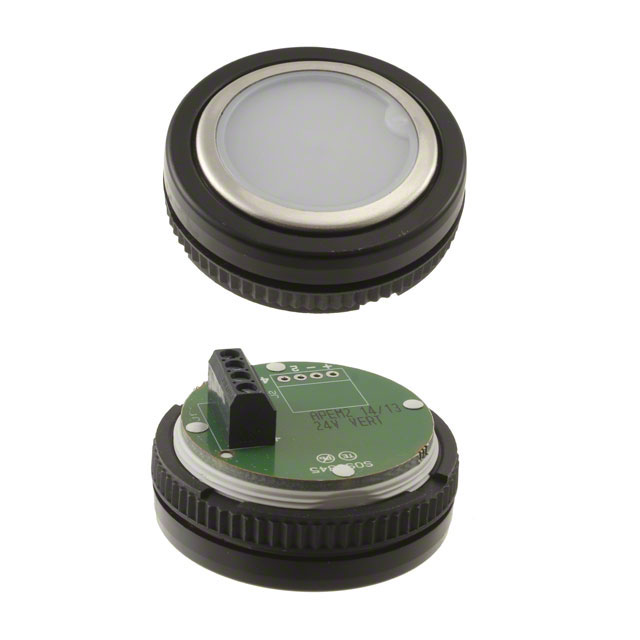

LPI3124G1K247XX

Active

APEM

SWITCH PUSH SPST-NO 0.05A 24V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSH SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	LPI3124G1K247XX

Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	White
Current Rating (Amps)	50 mA
Electrical Life	5000000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	38.1 mm
Switch Function	Off-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - DC	24 V

Part	Circuit	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Electrical Life	Illumination Type, Color	Color - Actuator/Cap	Type	Termination Style	Voltage Rating - DC	Mounting Type	Illumination Voltage (Nominal)	Mechanical Life	Current Rating (Amps)
APEM LPI3124G1K247XX	SPST-NO	Off-Mom	38.1 mm	Button Flush Round	5000000 Cycles	Green LED	White	Illuminated Standard	Screw Terminal	24 V	Panel Mount Front	5 VDC	5000000 Cycles	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
