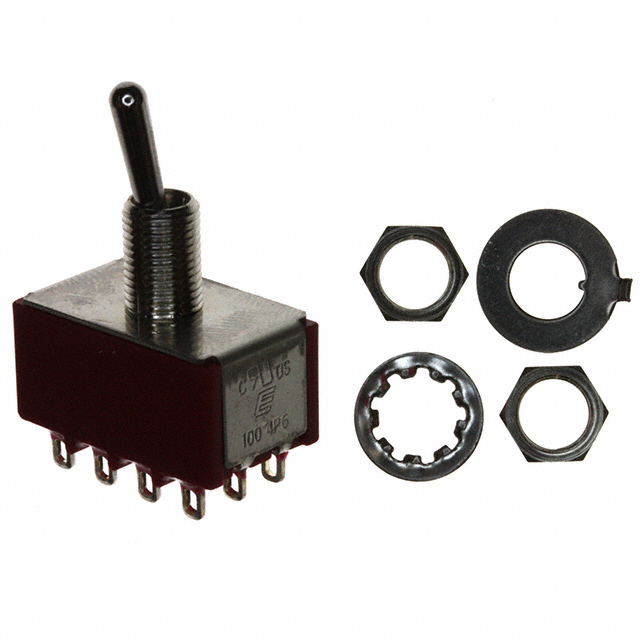

SWITCH TOGGLE DP3T 5A 120V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TOGGLE DP3T 5A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1004P6T1B1M1QEH

Actuator Length [x]	10.41 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	DP3T
Current Rating (Amps)	5 A
Electrical Life	40000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination	Voltage Rating - AC	Actuator Material	Features	Termination Style	Circuit	Bushing Thread	Actuator Length [x]	Electrical Life	Voltage Rating - DC	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Mounting Type
E-Switch 1004P6T7B13M1QEH	-30 ░C	85 °C	Standard Round	Non-Illuminated	120 V	Brass Chrome Plated	Jumper needed to achieve triple throw	Solder Lug	DP3T	15/32-32	13 mm	40000 Cycles	28 V	On-On-On	5 A	11.91 mm
E-Switch 1004P6T1B4M7QE	-30 ░C	85 °C	Standard Round	Non-Illuminated	120 V	Brass Chrome Plated	Jumper needed to achieve triple throw	PC Pin	DP3T	Unthreaded	10.41 mm	40000 Cycles	28 V	On-On-On	5 A		Right Angle Through Hole Vertical
E-Switch 1004P6T8B13M1QEH	-30 ░C	85 °C	Standard Round	Non-Illuminated	120 V	Brass Chrome Plated	Jumper needed to achieve triple throw	Solder Lug	DP3T	15/32-32	18 mm	40000 Cycles	28 V	On-On-On	5 A	11.91 mm
E-Switch 1004P6T1B1M1QEH	-30 ░C	85 °C	Standard Round	Non-Illuminated	120 V	Brass Chrome Plated	Jumper needed to achieve triple throw	Solder Lug	DP3T	1/4-40	10.41 mm	40000 Cycles	28 V	On-On-On	5 A	0.25 in
