1.5SMBJ12A-H

Active

Bourns Inc.

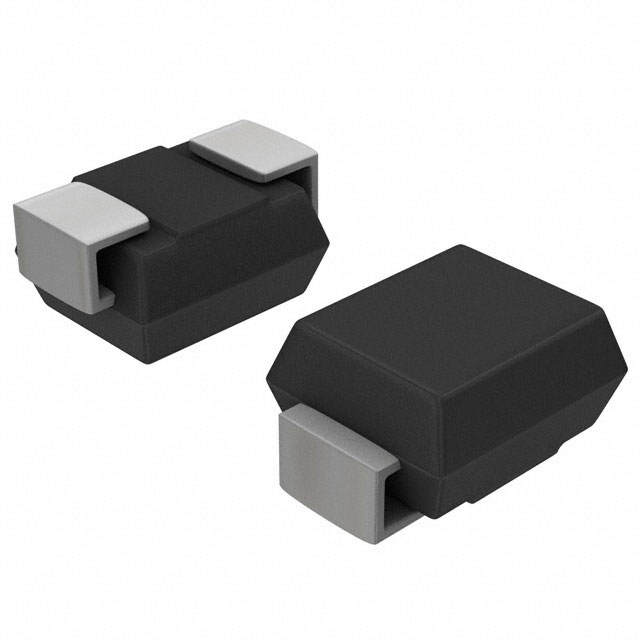

DIO TVS VRWM 12V 1500W UNIDIR SMB /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5SMBJ12A-H

Active

Bourns Inc.

DIO TVS VRWM 12V 1500W UNIDIR SMB /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMBJ12A-H

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	75.4 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	13.3 V
Voltage - Clamping (Max) @ Ipp [Max]	19.9 V
Voltage - Reverse Standoff (Typ)	12 V

1.5SMBJ Series

...

Part	Applications	Package / Case	Power - Peak Pulse	Power - Peak Pulse	Type	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Reverse Standoff (Typ)	Current - Peak Pulse (10/1000µs)	Qualification	Mounting Type	Grade	Supplier Device Package	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]
Bourns Inc. 1.5SMBJ51CA	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1	82.4 V	-55 °C	150 °C	51 V	18.2 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA
Bourns Inc. 1.5SMBJ54CA-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1		-55 °C	150 °C	54 V	17.3 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	87.1 V	60 V
Bourns Inc. 1.5SMBJ43CA-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1		-55 °C	150 °C	43 V	21.7 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	69.4 V	47.8 V
Bourns Inc. 1.5SMBJ17CA-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1		-55 °C	150 °C	17 V	54.4 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	27.6 V	18.9 V
Bourns Inc. 1.5SMBJ12A-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener			-55 °C	150 °C	12 V	75.4 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	19.9 V	13.3 V	1
Bourns Inc. 1.5SMBJ58CA-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1		-55 °C	150 °C	58 V	16.1 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	93.6 V	64.4 V
Bourns Inc. 1.5SMBJ51A	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener		82.4 V	-55 °C	150 °C	51 V	18.2 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA			1
Bourns Inc. 1.5SMBJ13A-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener			-55 °C	150 °C	13 V	69.8 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	21.5 V	14.4 V	1
Bourns Inc. 1.5SMBJ18CA-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener	1		-55 °C	150 °C	18 V	51.4 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	29.2 V	20 V
Bourns Inc. 1.5SMBJ15A-H	General Purpose	DO-214AA SMB	1.5 kW	1500 W	Zener			-55 °C	150 °C	15 V	61.5 A	AEC-Q101	Surface Mount	Automotive	SMB	DO-214AA	24.4 V	16.7 V	1
