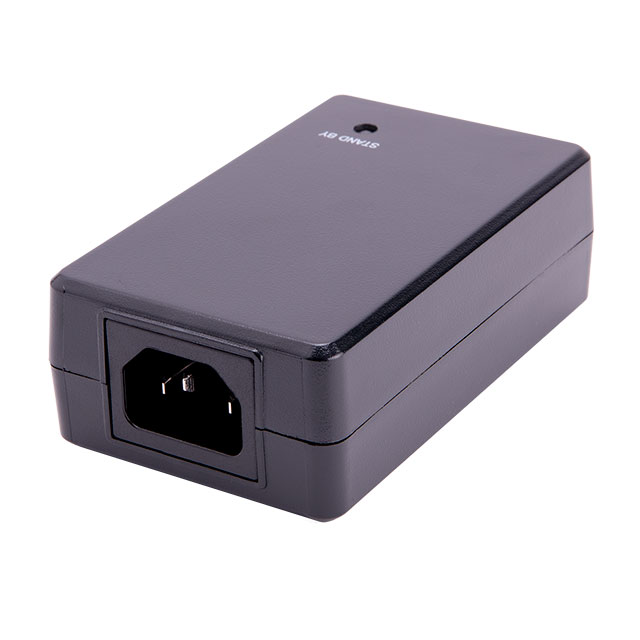

PW180KA4800N01
ObsoleteSL POWER / Advanced Energy
POE INJECTOR 20W 48V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PW180KA4800N01
ObsoleteSL POWER / Advanced Energy
POE INJECTOR 20W 48V DESKTOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PW180KA4800N01 |
|---|---|
| Approval Agency | cULus, EN, CE, IEC |
| Current - Output | 400 mA |
| Data Rate [Max] | 100 Mbps |
| Data Rate [Min] | 10 Mbps |
| Efficiency | 70 % |
| Features | OCP |
| Input Connector | IEC 320-C8 |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 20 W |
| Size / Dimension [x] | 101 mm |
| Size / Dimension [x] | 3.98 in |
| Size / Dimension [y] | 61.5 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [z] | 34.2 mm |
| Size / Dimension [z] | 1.35 " |
| Type | Midspan Injector |
| Voltage - Input [Max] | 250 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output | 48 V |
| Weight | 160.12 g |
| Weight | 0.353 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PW180KA4800 Series
48V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100 Mbps Data Rate
