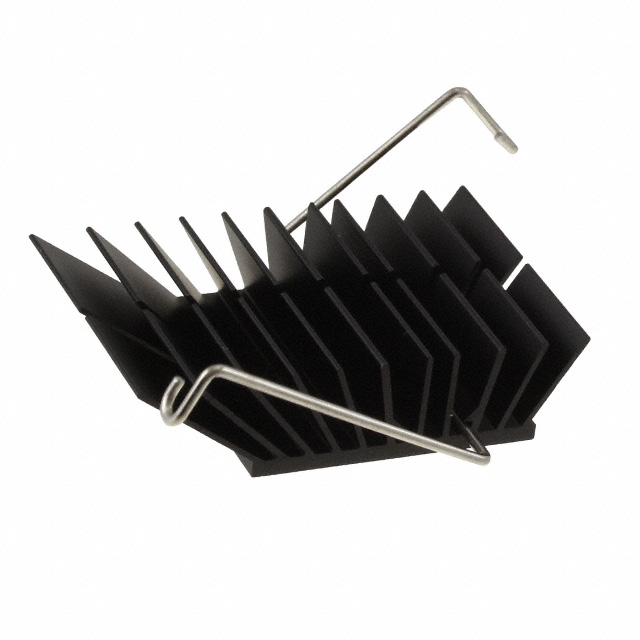

WAVE-32-12
ActiveWakefield-Vette
ANCHOR HEATSINK 32X32X12MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WAVE-32-12
ActiveWakefield-Vette
ANCHOR HEATSINK 32X32X12MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WAVE-32-12 |
|---|---|
| Attachment Method | Clip |
| Fin Height [z] | 0.472 in |
| Fin Height [z] | 12 mm |
| Length [x] | 32 mm |
| Length [x] | 1.26 " |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Shape | Angled Fins, Square |
| Thermal Resistance @ Forced Air Flow | 4.64 °C/W |
| Type | Board Level |
| Width | 32 mm |
| Width [x] | 1.26 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.79 | |
| 10 | $ 5.64 | |||
| 25 | $ 5.32 | |||
| 50 | $ 5.01 | |||
| 100 | $ 4.70 | |||
| 250 | $ 4.38 | |||
| 500 | $ 4.07 | |||
| 1000 | $ 3.99 | |||
Description
General part information
WAVE-32 Series
Heat Sink BGA Aluminum Alloy Board Level
