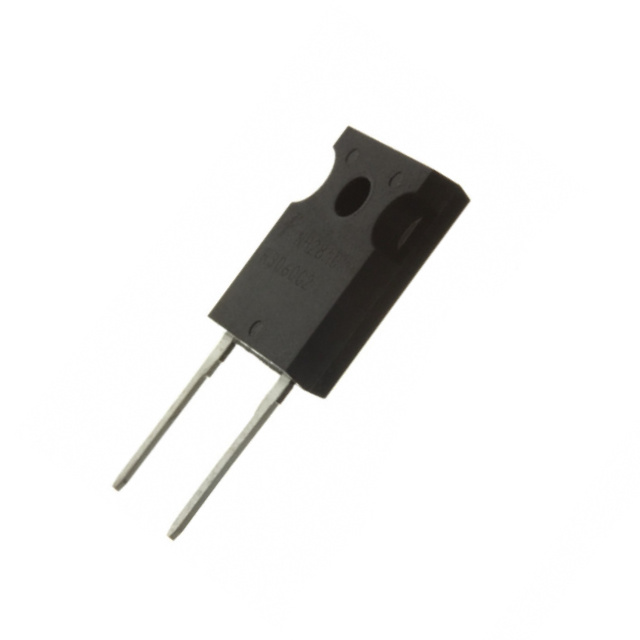

GD60MPS17H

Active

GeneSiC Semiconductor

DIODE SIL CARB 1.7KV 122A TO247

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SIL CARB 1.7KV 122A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	GD60MPS17H

Capacitance @ Vr, F	4577 pF
Current - Average Rectified (Io)	122 A
Current - Reverse Leakage @ Vr	40 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-247-2
Speed	200 mA, 500 ns
Supplier Device Package	TO-247-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	1700 V
Voltage - Forward (Vf) (Max) @ If	1.8 V

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Supplier Device Package	Mounting Type	Speed	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Current - Average Rectified (Io)
GeneSiC Semiconductor GD60MPS17H	1.8 V	40 µA	TO-247-2	TO-247-2	Through Hole	200 mA 500 ns	4577 pF	1700 V	175 ░C	-55 C	SiC (Silicon Carbide) Schottky	122 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1700 V 122A Through Hole TO-247-2
