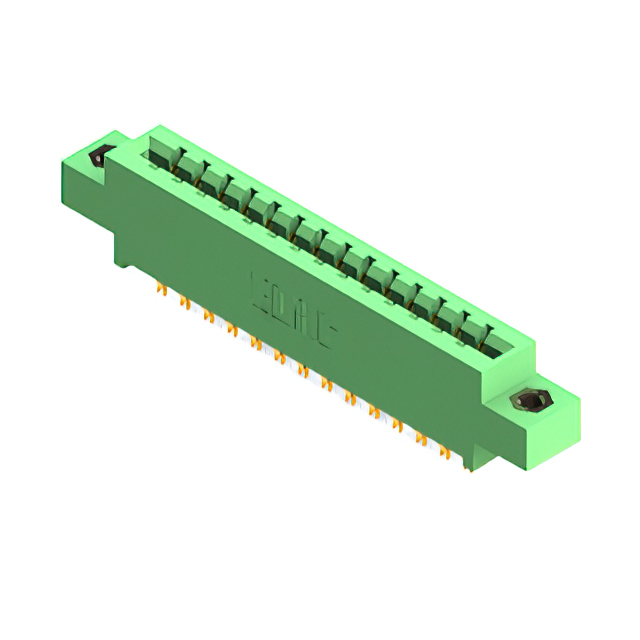

337-028-555-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
337-028-555-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-028-555-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
337-028 Series
...
| Part | Number of Positions/Bay/Row [custom] | Color | Contact Material | Material - Insulation | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Pitch [x] | Pitch [x] | Contact Type | Number of Positions | Contact Finish | Termination Rows | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 14 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Card Extender | Solder Eyelet(s) | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 2 | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | 2 | ||||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Solder | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole | 1 | 3.25 mm | 0.128 " | |||
EDAC Inc. | 14 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Solder | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 2 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole | 2 | |||||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Wire Wrap | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole | 1 | |||||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Solder | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole | 1 | |||||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Solder Eyelet(s) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | Through Hole | 1 | 2.95 mm | 0.116 in | |||
EDAC Inc. | 14 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Solder | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 2 | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | Through Hole | 2 | 3.96 mm | 0.156 in | |||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Wire Wrap | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole | 1 | |||||
EDAC Inc. | 14 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Card Guides | Solder | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 2 | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Through Hole | 2 | ||||
EDAC Inc. | 28 | Green | Copper Alloy | Polyester Thermoplastic | Female | -40 °C | 105 ░C | Wire Wrap | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | 0.156 in | 3.96 mm | Cantilever | 28 | Gold | 1 | 10 Áin | 0.25 Ám | Through Hole | 1 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
