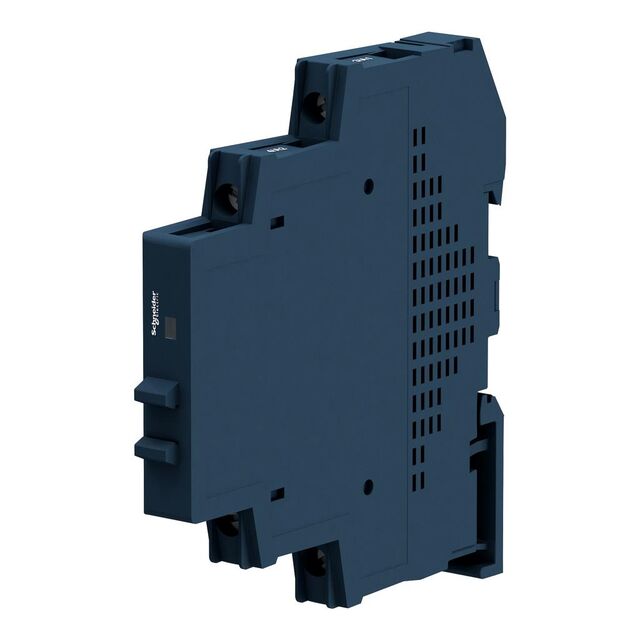

SSM1D36BD
ActiveSOLID STATE RELAY, SPST-NO, 6 A, 100 VDC, DIN RAIL, SCREW, ZERO CROSSING
Deep-Dive with AI
Search across all available documentation for this part.
SSM1D36BD
ActiveSOLID STATE RELAY, SPST-NO, 6 A, 100 VDC, DIN RAIL, SCREW, ZERO CROSSING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSM1D36BD |
|---|---|
| Approval Agency | CSA, UL |
| Load Current | 6 A |
| Mounting Type | DIN Rail |
| On-State Resistance (Max) [Max] | 100 mOhms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 100 V |
| Voltage - Load [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SSM1D Series
The SSM1D36BD is a 1-channel 1-phase DIN-rail mount Solid State Relay with zero switching for resistive load for inductive load applications. This solid state relay is a ready-to-use modular relay for greater power density. The unique housing design and integrated heat sink with no exposed metal surface offers compactness and enhances operating conditions of relay.
