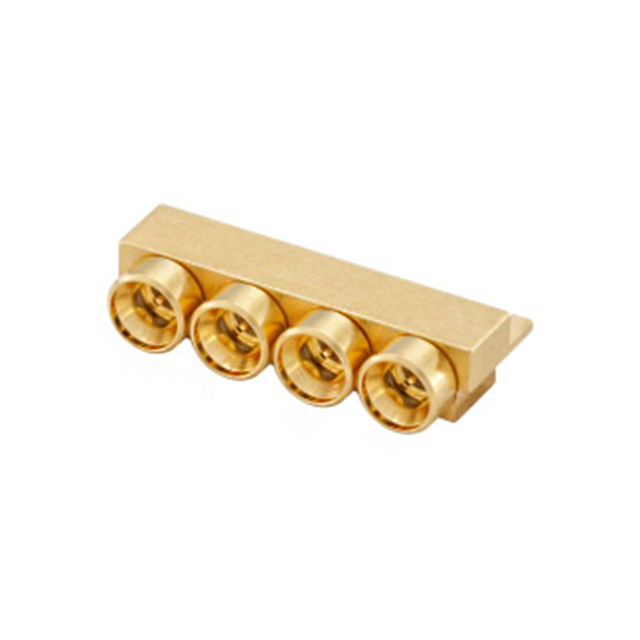

18S24H-40ML5

Active

Rosenberger

MINI SMP RIGHT ANGLE PLUG PCB

Search across all available documentation for this part.

Active

Rosenberger

MINI SMP RIGHT ANGLE PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	18S24H-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, SMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Smooth Bore
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	4
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	325 V

Part	Impedance	Body Finish	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Voltage Rating	Features	Connector Style	Shield Termination	Center Contact Material	Frequency - Max [Max]	Fastening Type	Housing Color	Contact Termination	Center Contact Plating	Dielectric Material	Body Material	Mounting Type	Mating Cycles
Rosenberger 18S24H-40ML5	50 Ohms	Gold	Male Pin Plug	155 °C	-55 °C	4	325 V	Smooth Bore	Mini SMP	Solder	Beryllium Copper	65 GHz	Snap-On	Gold	Solder	Gold	Polytetrafluoroethylene (PTFE)	Brass	Board Edge Cutout Surface Mount	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP, Mini Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
