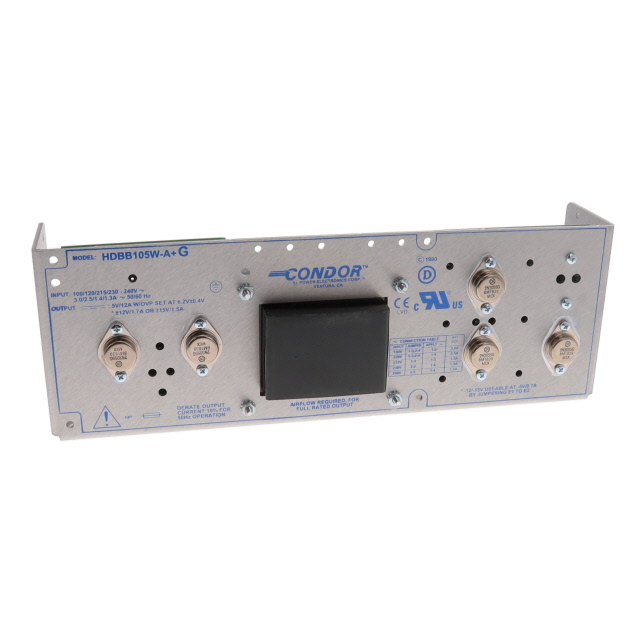

HDBB105W-A+G

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V

Technical Specifications

Parameters and characteristics for this part

Specification	HDBB105W-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	12 A
Current - Output 2	1.7 A
Current - Output 3	1.7 A
Efficiency	45 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	362 mm
Size / Dimension [x]	14.25 in
Size / Dimension [y]	4.88 in
Size / Dimension [y]	124 mm
Size / Dimension [z]	69.9 mm
Size / Dimension [z]	2.75 in
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 2	Approval Agency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Type	Voltage - Output 2	Features	Applications	Efficiency	Voltage - Output 3	Current - Output 3	Mounting Type
SL POWER / Advanced Energy HDBB105W-A+G	70 °C	0 °C	3	12 A	240 VAC	100 VAC	1.7 A	CE cURus TUV	4.88 in	124 mm	69.9 mm	362 mm	2.75 in	14.25 in	5 V	Linear	12 V	Adjustable Output Remote Sense Universal Input	ITE (Commercial)	45 %	-12 V	1.7 A	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 284.35

General part information

Linear AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
