833-056-520-812
ActiveEDAC Inc.

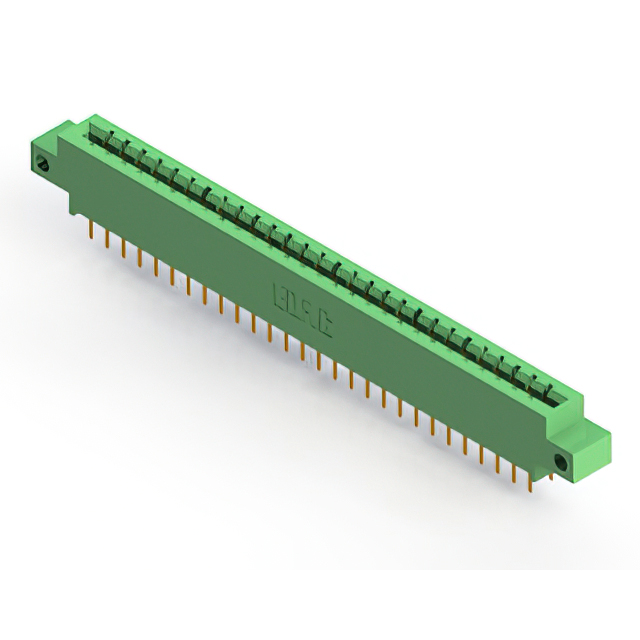

CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-056-520-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-056-520-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-056 Series
...
| Part | Card Type | Termination | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Color | Material - Insulation | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature | Flange Feature | Flange Feature | Mounting Type | Gender | Contact Material | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Dual Edge | Solder | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||
EDAC Inc. | Non Specified - Dual Edge | Wire Wrap | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||||
EDAC Inc. | Non Specified - Dual Edge | Solder | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Floating Bobbin Flush Mount | Board Edge Straddle Mount | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | 0.116 in | 2.95 mm | Card Extender | ||
EDAC Inc. | Non Specified - Dual Edge | Solder Eyelet(s) | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||||
EDAC Inc. | Non Specified - Dual Edge | Solder | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||||
EDAC Inc. | Non Specified - Dual Edge | Wire Wrap | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | ||||||
EDAC Inc. | Non Specified - Dual Edge | Wire Wrap | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||||
EDAC Inc. | Non Specified - Dual Edge | Solder | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | |||||
EDAC Inc. | Non Specified - Dual Edge | Solder | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | 3.25 mm | 0.128 in | Board Edge Straddle Mount | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | Card Extender | |||
EDAC Inc. | Non Specified - Dual Edge | Wire Wrap | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Green | Diallyl Phthalate (DAP) | 2 | Gold | 10 Áin | 0.25 Ám | Cantilever | Flush Mount Top Opening Unthreaded | Through Hole | Female | Copper Alloy | 0.156 in | 3.96 mm | 125 °C | -40 °C | 28 | 56 | 0.156 in | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 59.06 | |
Description
General part information
833-056 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
