XCS30XL-4CS280C

Obsolete

AMD

IC FPGA 192 I/O 280CSBGA

Search across all available documentation for this part.

Obsolete

AMD

IC FPGA 192 I/O 280CSBGA

Technical Specifications

Parameters and characteristics for this part

Specification	XCS30XL-4CS280C

Mounting Type	Surface Mount
Number of Gates	30000
Number of I/O	192
Number of LABs/CLBs	576
Number of Logic Elements/Cells	1368
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

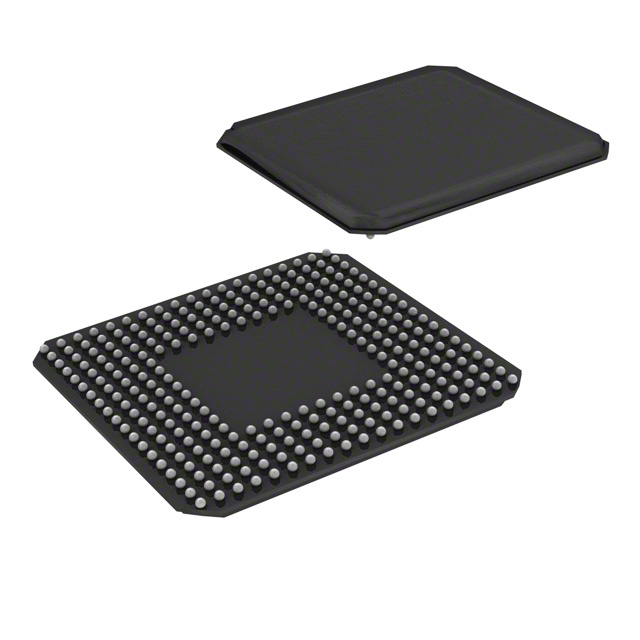

Package / Case	280-TFBGA, CSPBGA
Supplier Device Package	280-CSBGA (16x16)
Total RAM Bits	18432
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Total RAM Bits	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O	Number of Gates	Mounting Type	Supplier Device Package
AMD XCS30XL-5VQ100C	18432	0 °C	85 °C	100-TQFP	3.6 V	3 V	576	1368	77	30000	Surface Mount	100-VQFP (14x14)
AMD XCS30XL-4TQG144I	18432	-40 C	100 °C	144-LQFP	3.6 V	3 V	576	1368	113 I/O	30000	Surface Mount	144-TQFP (20x20)
AMD XCS30XL-4PQG208C	18432	0 °C	85 °C	208-BFQFP	3.6 V	3 V	576	1368	169	30000	Surface Mount	208-PQFP (28x28)
AMD XCS30XL-4PQ240C	18432	0 °C	85 °C	240-BFQFP	3.6 V	3 V	576	1368	192	30000	Surface Mount	240-PQFP (32x32)
AMD XCS30XL-5PQ240C	18432	0 °C	85 °C	240-BFQFP	3.6 V	3 V	576	1368	192	30000	Surface Mount	240-PQFP (32x32)
AMD XCS30XL-4VQ100I	18432	-40 C	100 °C	100-TQFP	3.6 V	3 V	576	1368	77	30000	Surface Mount	100-VQFP (14x14)
AMD XCS30XL-4VQ100C	18432	0 °C	85 °C	100-TQFP	3.6 V	3 V	576	1368	77	30000	Surface Mount	100-VQFP (14x14)
AMD XCS30XL-4CS280C	18432	0 °C	85 °C	280-TFBGA CSPBGA	3.6 V	3 V	576	1368	192	30000	Surface Mount	280-CSBGA (16x16)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Spartan®-XL Field Programmable Gate Array (FPGA) IC 192 18432 1368 280-TFBGA, CSPBGA

Technical documentation and resources

No documents available
