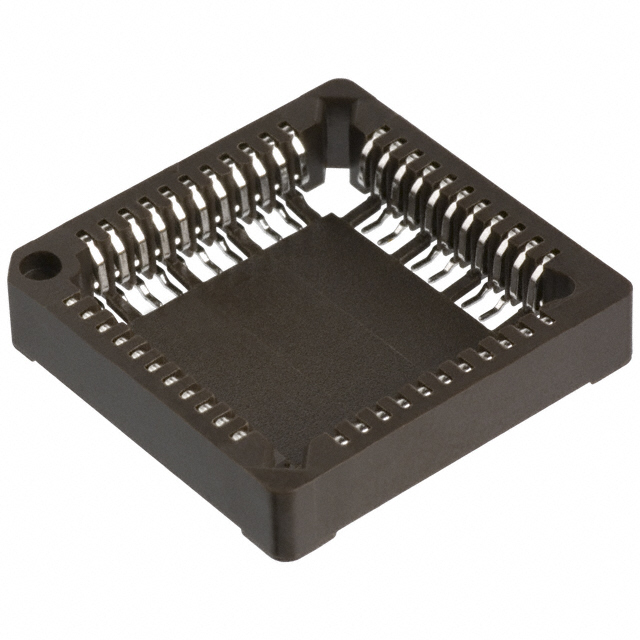

540-44-044-17-400004

Active

Mill-Max Manufacturing Corp.

CONN SKT PLCC

Deep-Dive with AI

Search across all available documentation for this part.

540-44-044-17-400004

Active

Mill-Max Manufacturing Corp.

CONN SKT PLCC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	540-44-044-17-400004

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Features	Closed Frame
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions or Pins (Grid)	44
Number of Positions or Pins (Grid) [custom]	4, 11
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	1.27 mm
Pitch - Post	0.05 in
Termination	Solder
Type	PLCC

540-44 Series

Part	Pitch - Mating	Pitch - Mating	Type	Termination	Pitch - Post	Pitch - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Resistance	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Post [custom]	Number of Positions or Pins (Grid)	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 540-44-032-24-000000	0.05 in	1.27 mm	PLCC	Solder	1.27 mm	0.05 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy	32	Through Hole	150 Áin	3.81 Ám	UL94 V-0
Mill-Max Manufacturing Corp. 540-44-052-24-000000	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy		Through Hole	150 Áin	3.81 Ám	UL94 V-0
Mill-Max Manufacturing Corp. 540-44-028-17-400004	0.05 in	1.27 mm	PLCC	Solder	1.27 mm	0.05 in	Closed Frame			Tin			200 µin	5.08 µm		28	Surface Mount	100 çin	2.54 çm	UL94 V-0	4	7
Mill-Max Manufacturing Corp. 540-44-084-24-000000	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy		Through Hole	150 Áin	3.81 Ám	UL94 V-0
Mill-Max Manufacturing Corp. 540-44-068-17-400004	0.05 in	1.27 mm	PLCC	Solder	1.27 mm	0.05 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy			Copper Alloy		Surface Mount			UL94 V-0	4	17	68	1 A
Mill-Max Manufacturing Corp. 540-44-068-24-000000	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy		Through Hole	150 Áin	3.81 Ám	UL94 V-0	4	17	68
Mill-Max Manufacturing Corp. 540-44-032-17-400000	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy	32	Surface Mount	150 Áin	3.81 Ám	UL94 V-0
Mill-Max Manufacturing Corp. 540-44-028-24-000000	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy	28	Through Hole	150 Áin	3.81 Ám	UL94 V-0	4	7
Mill-Max Manufacturing Corp. 540-44-044-17-400004	0.05 in	1.27 mm	PLCC	Solder	1.27 mm	0.05 in	Closed Frame			Tin			200 µin	5.08 µm		44	Surface Mount	100 çin	2.54 çm	UL94 V-0					4 11
Mill-Max Manufacturing Corp. 540-44-084-17-400004	0.05 in	1.27 mm	PLCC	Solder	2.54 mm	0.1 in	Closed Frame	-55 °C	125 °C	Tin	20 mOhm	Copper Alloy	150 Áin	3.81 Ám	Copper Alloy		Surface Mount	150 Áin	3.81 Ám	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 4.66
		500	$ 4.38
		750	$ 4.11
		1250	$ 3.84
		1750	$ 3.75
		2500	$ 3.64

Description

General part information

540-44 Series

44 (4 x 11) Pos PLCC Socket Tin Surface Mount
