GBI15B

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 100V 3.2A GBI

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 100V 3.2A GBI

Technical Specifications

Parameters and characteristics for this part

Specification	GBI15B

Current - Average Rectified (Io)	3.2 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C

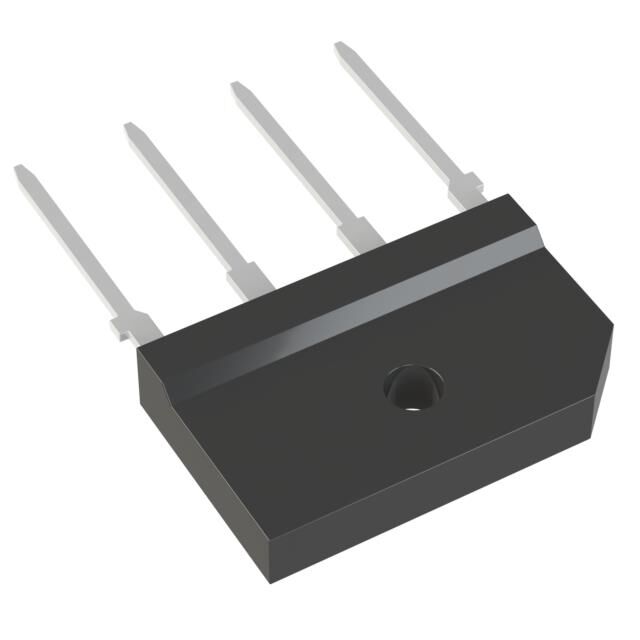

Package / Case	GBI, 4-SIP
Supplier Device Package	GBI
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	100 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Package / Case	Technology	Supplier Device Package	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
Diotec Semiconductor GBI15B	150 °C	-50 °C	Single Phase	4-SIP GBI	Standard	GBI	5 µA	Through Hole	3.2 A	100 V	1.1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 100 V Through Hole GBI
