SRSCBS-6-01
ActiveEssentra Access Solutions

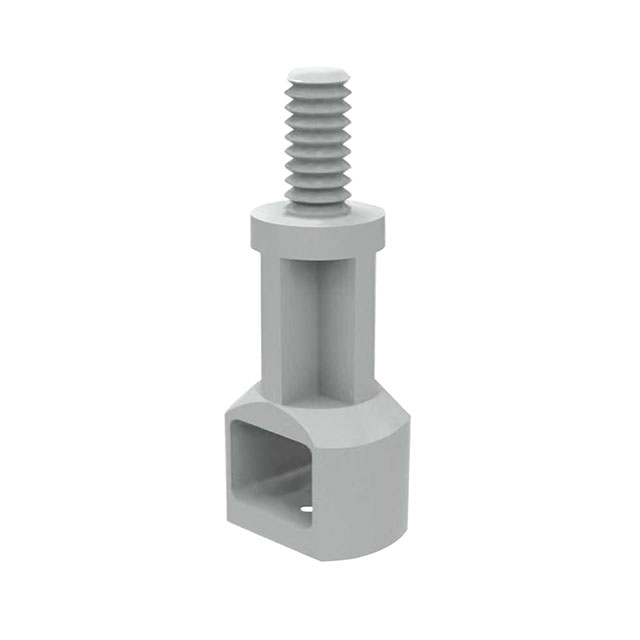

BRD SPT THR STUD SNAP RIVET 3/8"
Deep-Dive with AI
Search across all available documentation for this part.
SRSCBS-6-01
ActiveEssentra Access Solutions
BRD SPT THR STUD SNAP RIVET 3/8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRSCBS-6-01 |
|---|---|
| Between Board Height | 0.375 in |
| Between Board Height | 0.375 in |
| Between Board Height | 9.53 mm |
| Features | 6-32 Thread |
| Holding Type | Threaded Stud |
| Length - Overall [x] | 17.1 mm |
| Length - Overall [x] | 0.673 in |
| Material | Nylon |
| Mounting Hole Diameter [Max] [diameter] | 4.1 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.161 in |
| Mounting Hole Diameter [Min] [diameter] | 4 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.157 in |
| Mounting Type | Snap Rivet |
| Support Panel Thickness | 7.6 mm |
| Support Panel Thickness | 0.299 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.10 | |
| 5 | $ 0.08 | |||
| 10 | $ 0.08 | |||
| 25 | $ 0.07 | |||
| 50 | $ 0.07 | |||
| 100 | $ 0.06 | |||
| 250 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
Description
General part information
SRSCBS Series
Board Support Threaded Stud / Snap Rivet Nylon 0.375" (9.53mm) 3/8"
Documents
Technical documentation and resources
No documents available
