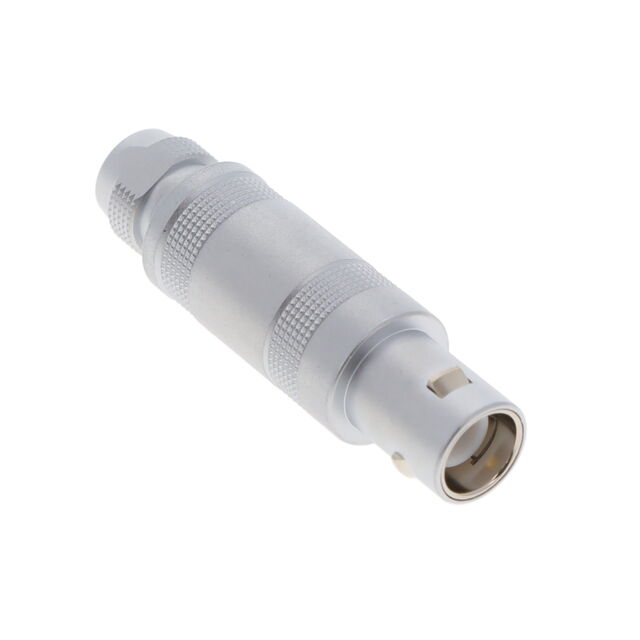

FFA.1S.250.CTAC32

Active

LEMO

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

FFA.1S.250.CTAC32

Active

LEMO

CONN COAX PLUG STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet Coaxial, Triaxial, Multi Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFA.1S.250.CTAC32

Body Finish	Chrome
Body Material	Brass
Cable Group	174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Coaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

...

Part	Body Finish	Contact Termination	Center Contact Material	Dielectric Material	Connector Type	Connector Style	Fastening Type	Body Material	Mating Cycles	Mounting Type	Center Contact Plating	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shield Termination	Impedance	Cable Group	Shell Material	Backshell Material, Plating	Shell Size - Insert	Material Flammability Rating	Primary Material	Shielding	Color	Insert Material	Contact Finish - Mating	Contact Material	Number of Positions	Features	Current Rating (Amps)	Orientation	Shell Finish	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	For Use With/Related Products	Accessory Type	Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]	Number of Ports	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
LEMO FFA.2S.250.CTLC52	Chrome	Solder	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Coaxial	Push-Pull	Brass	1000	Free Hanging (In-Line)	Gold	Silver	-55 °C	200 °C	IP50	Clamp	50 Ohms	223 302 400 59B RG-58C
LEMO FFA.0S.302.CLAC22Z					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	302	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	2	Backshell	10 A	Keyed	Chrome	0.087 in	0.051 in	1.3 mm	2.2 mm
LEMO GEA.3S.240.LN																									Silver													3B 3S Series Connector	Hex Nut	Brass
LEMO FFA.1S.306.CLLC52					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	306	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	6	Backshell	7 A	Keyed	Chrome								0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO FFA.1S.304.CLAC57Z					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	304	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	4	Backshell	10 A	Keyed	Chrome											0.205 in 0.224 in	5.2 mm 5.7 mm
LEMO FFA.00.731.CN																																						00 Series Connector	Collet
LEMO FFA.1S.250.CTAC32	Chrome	Solder	Brass	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Coaxial	Push-Pull	Brass	1000	Free Hanging (In-Line)	Gold	Silver	-55 °C	250 °C	IP50	Clamp	50 Ohms	174 174A 178B 188A 196A 316B RG-122																												1
LEMO FFA.3S.314.CLAC92					Female Sockets Male Pins Plug		Push-Pull			Free Hanging (In-Line)			-55 °C	250 °C	IP50				Brass	Brass Chrome	314	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Brass Bronze	14	Backshell	7 A	Keyed	Chrome														0.382 in	9.7 mm	0.315 in	8 mm
LEMO ERA.0S.405.CLL					Receptacle Female Sockets		Push-Pull						-55 °C	250 °C	IP50				Brass		405	UL94 V-0	Metal	Shielded	Silver	Polyetheretherketone (PEEK)	Gold	Bronze	1		4 A	Keyed	Chrome																		Bulkhead - Rear Side Nut
LEMO FFA.1Y.405.ZTA					Insert Male Pins								-55 °C	230 °C	IP50						405					Polytetrafluoroethylene (PTFE)	Gold	Brass	1	Insert Only Requires Shell	8 A																					59 Áin	1.5 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.89
		10	$ 31.43
		25	$ 30.07
		50	$ 29.10
		100	$ 28.13
		250	$ 26.58

Description

General part information

ERA.0S Series

Circular Push Pull Connectors FIXED RECEPTACLE NUT FIXING

Documents

Technical documentation and resources

Datasheet

Coaxial, Triaxial, Multi Catalog

Datasheet
