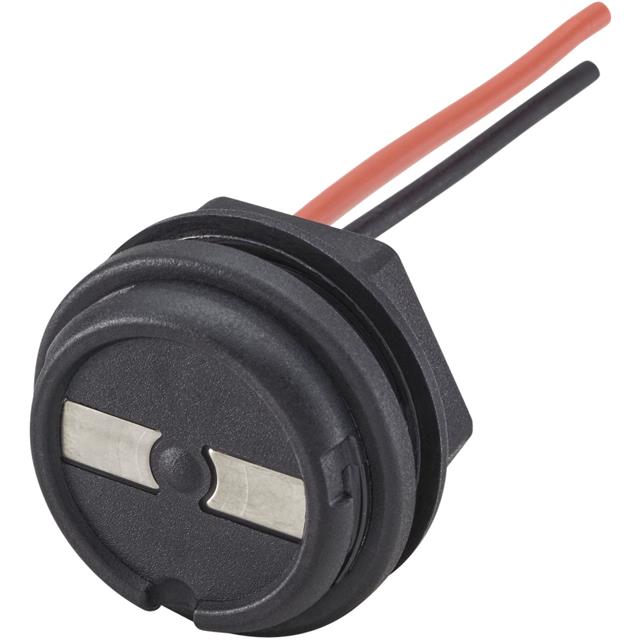

M2S103-3XX

Active

Rosenberger

CONN CIRC RCPT 2POS NICKEL SLDR

Search across all available documentation for this part.

Active

Rosenberger

CONN CIRC RCPT 2POS NICKEL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	M2S103-3XX

Applications	Industrial, Automotive
Color	Black
Connector Type	Receptacle, Non-Gendered
Contact Finish - Mating	Nickel
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	25 A
Mounting Type	Through Hole
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT), Glass Filled
Shielding	Unshielded
Termination	Solder
Voltage Rating	12 V

Part	Color	Applications	Shielding	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Shell Material	Number of Positions	Contact Material	Connector Type	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Primary Material
Rosenberger M2S103-3XX	Black	Automotive Industrial	Unshielded	Solder	78.7 µin	2 µm	25 A	Polybutylene Terephthalate (PBT) Glass Filled	2	Copper Alloy	Receptacle Non-Gendered	12 V	Through Hole	-40 °C	105 ░C	Nickel	Keyed	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Non-Gendered Solder
