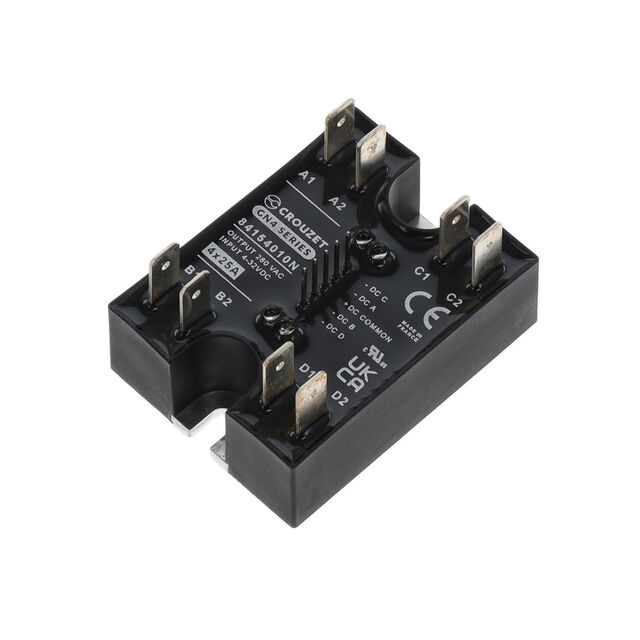

84154010N
ActiveCrouzet
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84154010N
ActiveCrouzet
SSR RELAY SPST-NO 25A 24-280V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 84154010N |
|---|---|
| Approval Agency | UKCA, CE, cURus |
| Circuit | SPST-NO (1 Form A) x 4 |
| Load Current | 25 A |
| Mounting Type | Chassis Mount or Panel Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 280 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 179.29 | |
Description
General part information
8415401 Series
Solid State SPST-NO (1 Form A) x 4 Hockey Puck
Documents
Technical documentation and resources
