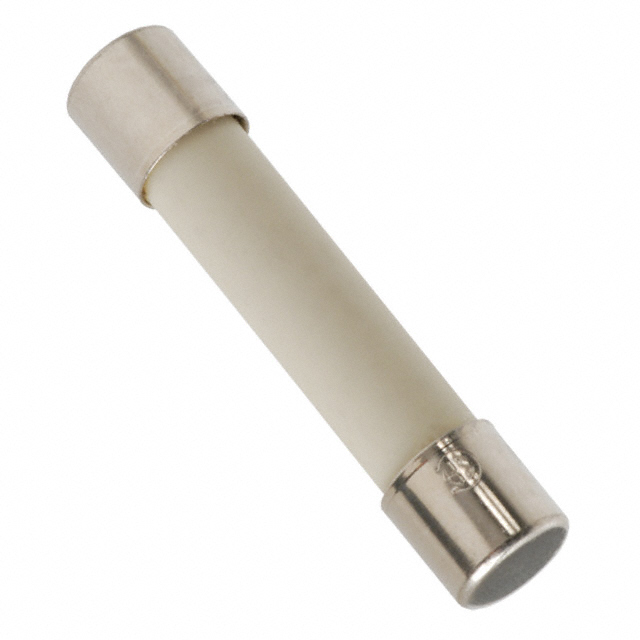

0314.250HXP
ObsoleteLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, FAST BLOW, 0.25A, 250VAC, 125VDC, 35A (IR), SUPPLEMENTAL, INLINE/HOLDER, 3AB, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0314.250HXP
ObsoleteLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, FAST BLOW, 0.25A, 250VAC, 125VDC, 35A (IR), SUPPLEMENTAL, INLINE/HOLDER, 3AB, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0314.250HXP |
|---|---|
| Approval Agency | UL, CSA, CE |
| Breaking Capacity @ Rated Voltage | 10 kA, 35 A |
| Current Rating (Amps) | 0.25 A |
| DC Cold Resistance | 1.95 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 0.014 I²t |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3AB, 3AG |
| Package / Case [x] | 1/4 |
| Package / Case [y] | 1-1/4 |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.25 in |
| Size / Dimension [diameter] | 6.35 mm |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 " |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
0314.250 Series
The 3AB Fast-Acting Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
