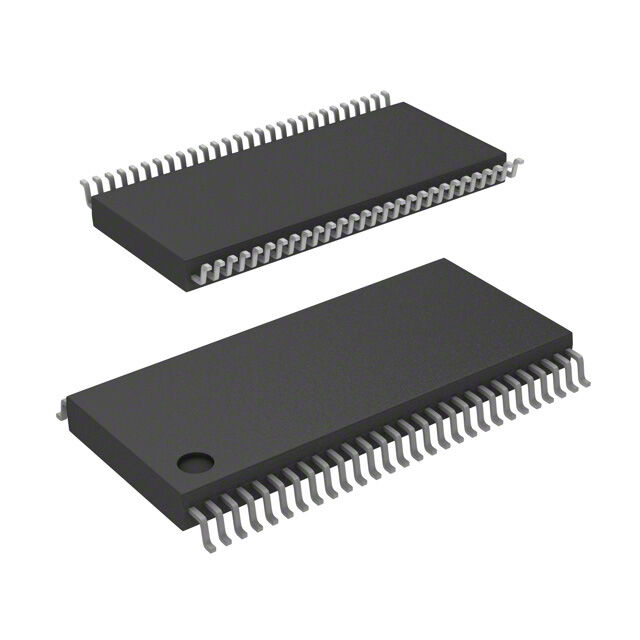

74FCT162823CTPAG8

Obsolete

Renesas Electronics Corporation

IC FF D-TYPE DBL 9-BIT 56-TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIDT Suffixes Datasheet

74FCT162823CTPAG8

Obsolete

Renesas Electronics Corporation

IC FF D-TYPE DBL 9-BIT 56-TSSOP

Deep-Dive with AI

DocumentsIDT Suffixes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	74FCT162823CTPAG8

Current - Output High, Low	24 mA
Current - Quiescent (Iq)	0.5 mA
Input Capacitance	3.5 pF
Max Propagation Delay @ V, Max CL	8 ns
Mounting Type	Surface Mount
Number of Bits per Element	9
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Tri-State, Non-Inverted
Package / Case	6.1 mm
Package / Case	0.24 in
Package / Case	56-TFSOP
Supplier Device Package	56-TSSOP
Trigger Type	Positive Edge
Type	D-Type
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

74FCT162823T Series

18-Bit Register

Part	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Max Propagation Delay @ V, Max CL	Mounting Type	Number of Elements	Current - Output High, Low	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Supplier Device Package	Output Type	Input Capacitance	Package / Case	Package / Case	Package / Case	Type	Trigger Type
Renesas Electronics Corporation 74FCT162823CTPVG8	0.5 mA	85 °C	-40 °C	8 ns	Surface Mount	2	24 mA	4.5 V	5.5 V	9	56-SSOP	Non-Inverted Tri-State	3.5 pF	0.295 in	56-BSSOP	7.5 mm	D-Type	Positive Edge
Renesas Electronics Corporation 74FCT162823CTPAG8	0.5 mA	85 °C	-40 °C	8 ns	Surface Mount	2	24 mA	4.5 V	5.5 V	9	56-TSSOP	Non-Inverted Tri-State	3.5 pF	0.24 in	56-TFSOP	6.1 mm	D-Type	Positive Edge
Renesas Electronics Corporation 74FCT162823ATPVG8	0.5 mA	85 °C	-40 °C	20 ns	Surface Mount	2	24 mA	4.5 V	5.5 V	9	56-SSOP	Non-Inverted Tri-State	3.5 pF	0.295 in	56-BSSOP	7.5 mm	D-Type	Positive Edge
Renesas Electronics Corporation 74FCT162823ATPVG	0.5 mA	85 °C	-40 °C	20 ns	Surface Mount	2	24 mA	4.5 V	5.5 V	9	56-SSOP	Non-Inverted Tri-State	3.5 pF	0.295 in	56-BSSOP	7.5 mm	D-Type	Positive Edge
Renesas Electronics Corporation 74FCT162823ATPAG8	0.5 mA	85 °C	-40 °C	20 ns	Surface Mount	2	24 mA	4.5 V	5.5 V	9	56-TSSOP	Non-Inverted Tri-State	3.5 pF	0.24 in	56-TFSOP	6.1 mm	D-Type	Positive Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

74FCT162823T Series

The 74FCT162823T 18-bit high-speed, low-power bus interface register with clock enable (xCLKEN) and clear (xCLR) controls are ideal for parity bus interfacing in high-performance synchronous systems. The device can operate as two 9-bit registers or one 18-bit register. The 74FCT162823T offers low ground bounce, minimal undershoot, and controlled output fall times – reducing the need for external series terminating resistors. The 74FCT162823T operates at -40 °C to +85 °C.

Documents

Technical documentation and resources

IDT Suffixes

Datasheet
