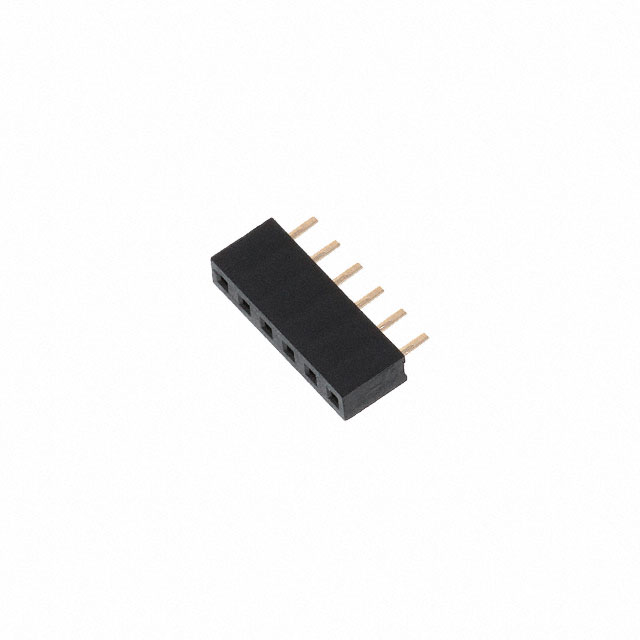

FR20C06VBNN
ActiveMETZ CONNECT USA Inc.
CONN RCPT 6POS 0.079 PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FR20C06VBNN
ActiveMETZ CONNECT USA Inc.
CONN RCPT 6POS 0.079 PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FR20C06VBNN |
|---|---|
| Connector Type | Receptacle |
| Contact Length - Post [x] | 2.2 mm |
| Contact Length - Post [x] | 0.087 in |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Ingress Protection | IP00 |
| Insulation Color | Black |
| Insulation Height | 4.3 mm |
| Insulation Height | 0.169 " |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.76 | |
| 40 | $ 0.57 | |||
| 120 | $ 0.54 | |||
| 520 | $ 0.47 | |||
| 1000 | $ 0.39 | |||
| 5000 | $ 0.34 | |||
| 10000 | $ 0.32 | |||
Description
General part information
FR20C06VB Series
6 Position Receptacle Connector 0.079" (2.00mm) Through Hole
