R6428-00
ActiveHarwin Inc.

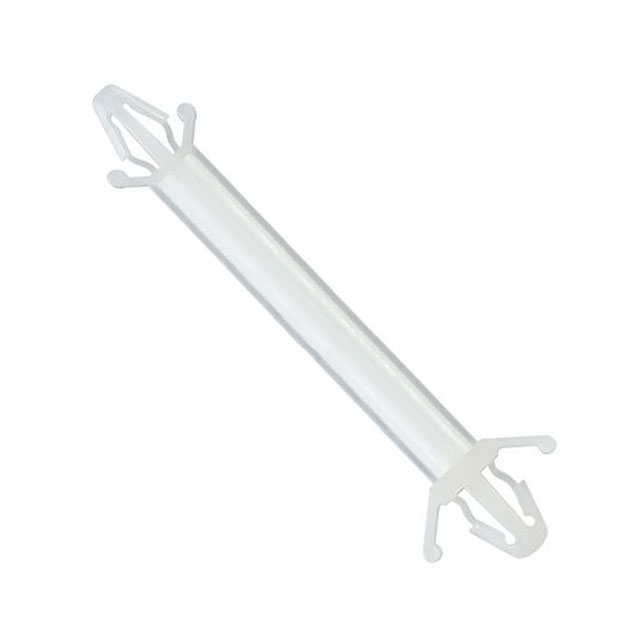

28.50MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R6428-00
ActiveHarwin Inc.
28.50MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R6428-00 |
|---|---|
| Holding Type | Snap Lock |
| Length - Overall [x] | 1.776 in |
| Length - Overall [x] | 45.1 mm |
| Material | Nylon |
| Mounting Hole Diameter | 4.8 mm |
| Mounting Hole Diameter | 0.189 in |
| Mounting Panel Thickness | 2.7 mm |
| Mounting Panel Thickness | 0.106 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R6428 Series
Board Support Snap Lock / Snap Lock Nylon 1.122" (28.50mm)
