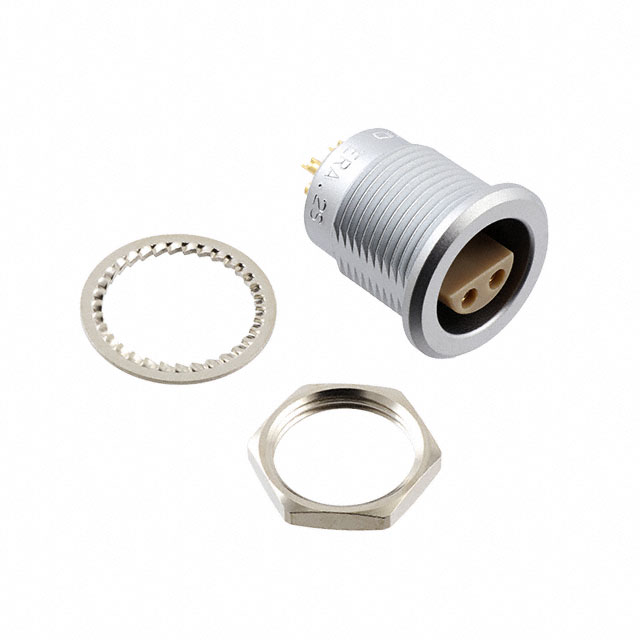

ERA.2S.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.2S.304.CLL

Active

LEMO

CONN CIRC RCPT 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.2S.304.CLL

Color	Silver
Connector Type	Female Sockets, Male Pins, Receptacle
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

ERA.2S Series

Part	Contact Material	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Color	Shell Material	Insert Material	Shielding	Orientation	Connector Type	Shell Size - Insert	Contact Finish - Mating	Primary Material	Number of Positions	Body Finish	Includes	Connector Style	Impedance	Center Contact Plating	Shield Termination	Mating Cycles	Cable Group	Contact Termination	Body Material	Center Contact Material	Dielectric Material	Housing Color
LEMO ERA.2S.303.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	15 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	303	Gold	Metal
LEMO ERA.2S.302.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	20 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	302	Gold	Metal	2
LEMO ERA.2S.305.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	13 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	305	Gold	Metal
LEMO ERA.2S.650.CTL		Push-Pull	IP50	-55 °C	200 °C			Bulkhead - Rear Side Nut							Female Socket Receptacle					Chrome	1 Connector 1 Lockwasher 1 Nut	Triaxial	50 Ohms	Gold	Solder	1000	8232A 9222 Belden 8215 RG-174	Solder Cup	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Silver
LEMO ERA.2S.408.CLL	Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	10 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Receptacle Female Sockets		Gold	Metal	1
LEMO ERA.2S.307.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	9 A 12 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	307	Gold	Metal	7
LEMO ERA.2S.304.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	15 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	304	Gold	Metal	4
LEMO ERA.2S.140.CLL	Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	40 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Receptacle Female Sockets	140	Gold	Metal	1
LEMO ERA.2S.310.CLL	Brass Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	7 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets Male Pins Receptacle	310	Gold	Metal	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.91
		10	$ 40.20
		25	$ 38.46
		50	$ 37.22
		100	$ 35.98
		250	$ 34.00

Description

General part information

ERA.2S Series

4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
