GBJ25MI_T0_00101

NRND

Panjit International Inc.

GBJ-1, GENERAL

Search across all available documentation for this part.

NRND

Panjit International Inc.

GBJ-1, GENERAL

Technical Specifications

Parameters and characteristics for this part

Specification	GBJ25MI_T0_00101

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBJ
Supplier Device Package	GBJ-1
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Current - Average Rectified (Io)	Technology	Diode Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package
Panjit International Inc. GBJ25MI_T0_00101	5 µA	1000 V	25 A	Standard	Single Phase	Through Hole	-55 °C	150 °C	4-SIP GBJ	1 V	GBJ-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

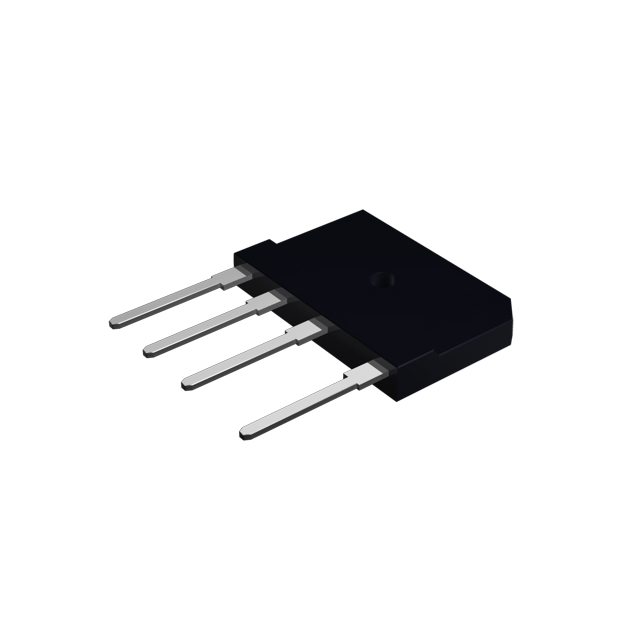

Bridge Rectifier Single Phase Standard 1 kV Through Hole GBJ-1

Technical documentation and resources
