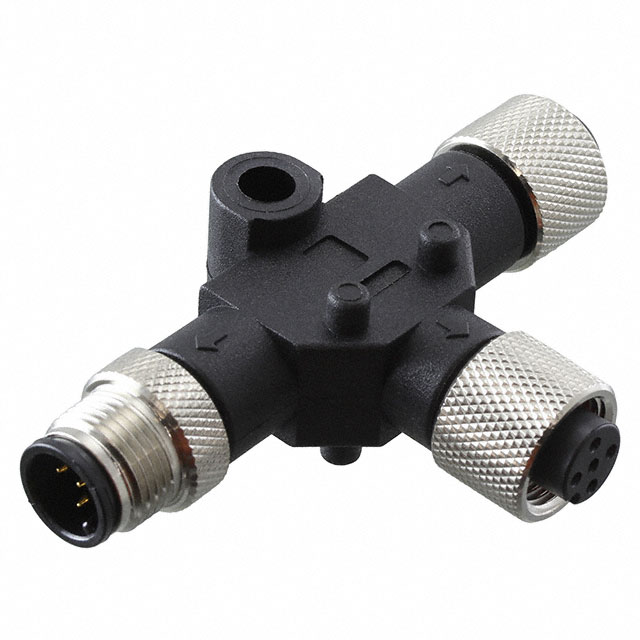

500-303T-W05

Active

CnC Tech, LLC

CONN T-ADPT 5P-5/5P M-F/F INLINE

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN T-ADPT 5P-5/5P M-F/F INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	500-303T-W05

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets (2)
Current Rating (Amps)	5 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Thermoplastic Polyurethane (TPU)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	60 VAC

Part	Features	Housing Color	Mounting Type	Orientation (Convert To)	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Convert From (Adapter End)	Voltage Rating	Housing Material	Current Rating (Amps)	Shielding	Orientation (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Convert To (Adapter End)	Number of Positions (Convert From)
CnC Tech, LLC 500-303T-W05	Coupling Nut	Black	Free Hanging (In-Line)	Keyed	IP67 - Dust Tight Waterproof	100 °C	-40 °C	Distributor T-Shaped	Male Pins	60 VAC	Thermoplastic Polyurethane (TPU)	5 A	Unshielded	Keyed	5	2	M12	M12	Female Sockets (2)	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 5/5 (2) Male Pins/Female Sockets (2) Free Hanging (In-Line)
