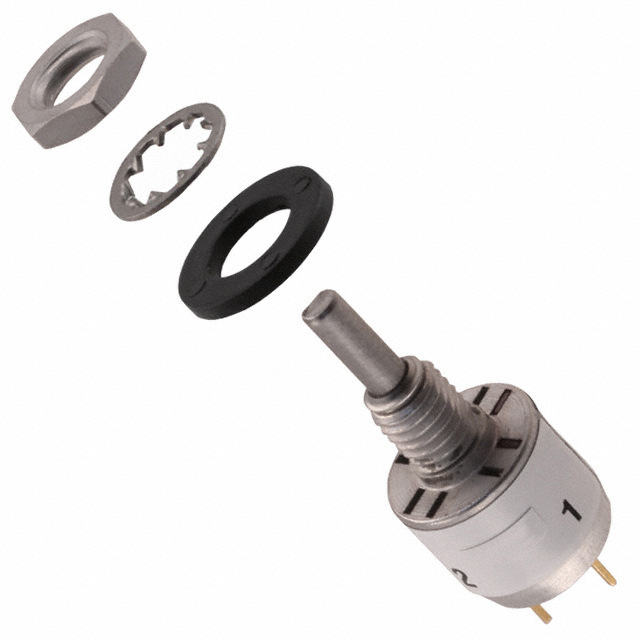

50DP90-01-1-AJN

Active

Grayhill Inc.

SWITCH ROTARY 2-4POS 150MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2-4POS 150MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	50DP90-01-1-AJN

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	90 °
Circuit per Deck	SP4T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	13.64 mm
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions [Max]	4
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	PC Pin
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Circuit per Deck	Actuator Type [diameter]	Actuator Type	Contact Timing	Current Rating (Amps)	Termination Style	Depth Behind Panel [z]	Angle of Throw	Voltage Rating - AC	Number of Decks [custom]	Number of Poles per Deck	Actuator Length [x]	Contact Finish	Index Stops	Mounting Type	Number of Positions	Number of Positions [Max]	Number of Positions [Min]
Grayhill Inc. 50DP90-01-2-AJN	6.45 mm	28 V	DPDT	3.17 mm	Flatted	Non-Shorting	150 mA 200 mA	PC Pin	13.64 mm	90 °	115 V	1	2	9.53 mm	Gold	Adjustable	Panel Mount Through Hole	2
Grayhill Inc. 50DP90-01-1-AJN	6.45 mm	28 V	SP4T	3.17 mm	Flatted	Non-Shorting	150 mA 200 mA	PC Pin	13.64 mm	90 °	115 V	1	1	9.53 mm	Gold	Adjustable	Panel Mount Through Hole		4	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 2 ~ 4 Position SP4T 150mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
