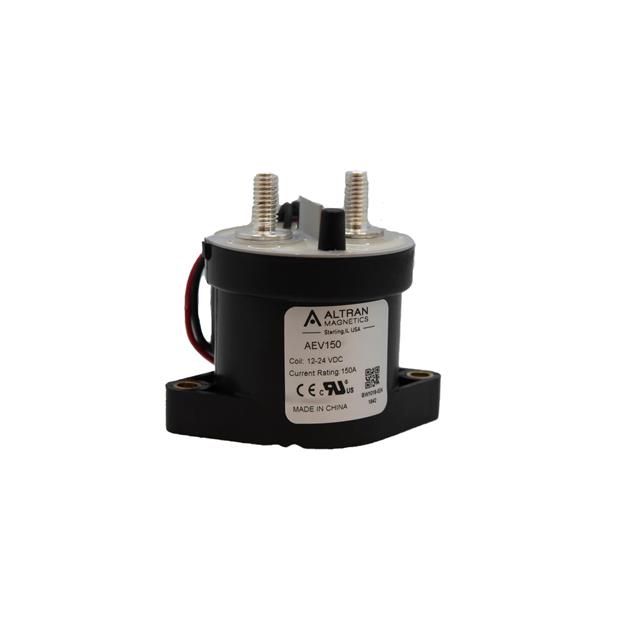

AEV150-M

Active

Altran Magnetics, LLC

DC CONTACTOR 150A,12-24VDC COIL

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

DC CONTACTOR 150A,12-24VDC COIL

Technical Specifications

Parameters and characteristics for this part

Specification	AEV150-M

Coil Current	130 mA
Coil Voltage [Max]	24 VDC
Coil Voltage [Min]	12 VDC
Contact Form	SPST-NO (DM) (1 Form X)
Contact Rating (Current)	150 A
Features	Sealed - Hermetically, Economizer
Mounting Type	Chassis Mount
Must Operate Voltage	9 VDC
Must Release Voltage	6 VDC
Operate Time	25 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Release Time	12 ms
Switching Voltage	900 VDC
Termination Style	Wire Leads, Stud

Part	Mounting Type	Coil Voltage [Min]	Coil Voltage [Max]	Termination Style	Coil Current	Switching Voltage	Contact Form	Must Release Voltage	Operate Time	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Release Time
Altran Magnetics, LLC AEV150-M	Chassis Mount	12 VDC	24 VDC	Stud Wire Leads	130 mA	900 VDC	SPST-NO (DM) (1 Form X)	6 VDC	25 ms	9 VDC	150 A	85 °C	-40 °C	Economizer Sealed - Hermetically	12 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC CONTACTOR 150A,12-24VDC COIL

Technical documentation and resources

No documents available
