345-030-500-502
ActiveEDAC Inc.

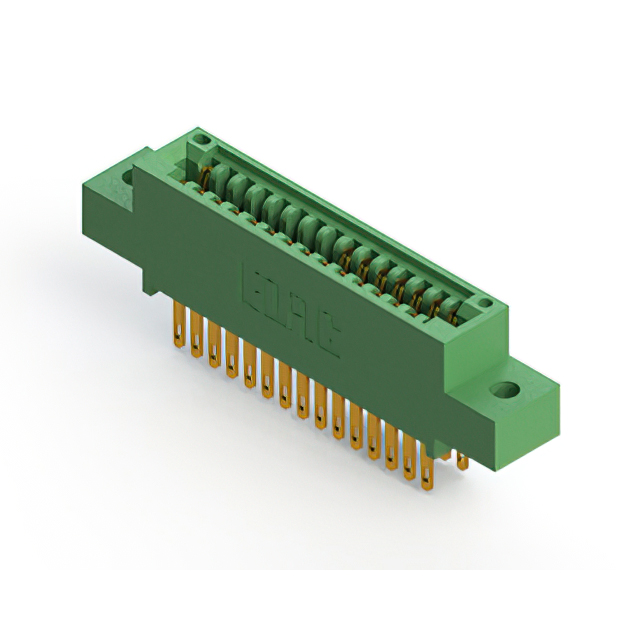

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-030-500-502
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-030-500-502 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
345-030 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Rows | Termination Rows | Read Out | Mounting Type | Contact Type | Termination | Pitch [x] | Pitch [x] | Card Type | Contact Material | Number of Positions/Bay/Row [custom] | Material - Insulation | Flange Feature | Flange Feature | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish | Gender | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 2 | 2 | Dual | Through Hole | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Copper Alloy | 15 | Polyester Thermoplastic | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 2 | 2 | Dual | Board Edge Straddle Mount | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Copper Alloy | 15 | Polyester Thermoplastic | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 2 | 2 | Dual | Board Edge Straddle Mount | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Copper Alloy | 15 | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | Card Extender | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 2 | 2 | Dual | Through Hole | Cantilever | Solder Eyelet(s) | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Copper Alloy | 15 | Polyester Thermoplastic | 3.25 mm | 0.128 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 1 | 1 | Single | Through Hole Right Angle | Cantilever | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | 30 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 2 | 2 | Dual | Through Hole | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Dual Edge | Copper Alloy | 15 | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | Card Guides | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 1 | 1 | Single | Through Hole | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | 30 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | Card Guides | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 1 | 1 | Single | Through Hole | Cantilever | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | 30 | Polyester Thermoplastic | Floating Bobbin Flush Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | 0.116 in | 2.95 mm | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 1 | 1 | Single | Through Hole Right Angle | Cantilever | Solder | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | 30 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female | Card Guides | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | 30 | 1 | 1 | Single | Through Hole | Cantilever | Wire Wrap | 2.54 mm | 0.1 in | Non Specified - Single Edge | Copper Alloy | 30 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Green | Gold | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
